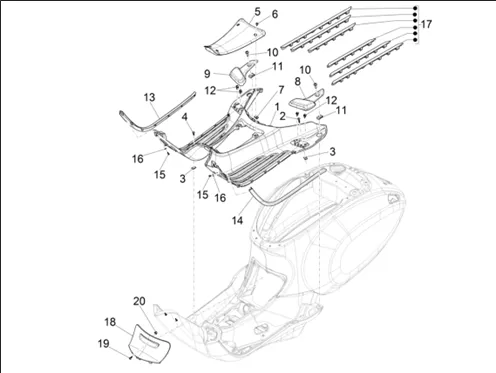

Vehicle Exploded View - VESPA VESPA ELECTTRICA 0 Vespa Elettrica 2018 (EMEA)

	P2R reference	155289
	Maker reference	67361200HV

STEP FOOT/PLANCHER OEM PIAGGIO VESPA ELLETRICA-67361200HV

	P2R reference	91292
	Maker reference	673612

STEP FOOT/PLANCHER OEM PIAGGIO 50-125 VESPA PRIMAVERA, SPRINT 2013 > UNPAINTED-673612

	P2R reference	73361
	Maker reference	CM178610

SCREW TORX (4, 2X25) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178610

	P2R reference	72924
	Maker reference	CM017408

NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408

	P2R reference	73357
	Maker reference	CM178601

SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178601

	P2R reference	91348
	Maker reference	673622

COVER DE BATTERY OEM PIAGGIO 50-125 PRIMAVERA 2013 >, SPRINT 2014 >-673622

	P2R reference	73357
	Maker reference	CM178601

SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178601

	P2R reference	72926
	Maker reference	CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

	P2R reference	91868
	Maker reference	675052000C

REST FEET PASSENGER LEFT OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 >, SPRINT 2014 >-675052000C

	P2R reference	91869
	Maker reference	675053000C

REST FEET PASSENGER RIGHT OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 >, SPRINT 2014 >-675053000C

	P2R reference	73367
	Maker reference	CM179302

SCREW TORX (6X22) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179302

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	73404
	Maker reference	D9004468091

AGRAPHE OEM PIAGGIO COMMON A TOUTE LA RANGE-D9004468091

	P2R reference	200092
	Maker reference	CM2988055

CM2988055-RIGHT PART FOOTPEG

	P2R reference	200091
	Maker reference	CM2988095

CM2988095-FOOTREST EDGE RH SIDE GREEN

	P2R reference	200090
	Maker reference	CM2988085

CM2988085-RIGHT PART FOOTPEG

	P2R reference	155062
	Maker reference	CM298803

BORDURE OF REST FOOT RIGHT BLACK BRILLANT OEM PIAGGIO 50-125 VESPA SPRINT 2016 >-CM298803

	P2R reference	153087
	Maker reference	CM298802

BORDURE OF REST FOOT RIGHT BLACK OEM PIAGGIO 50-125 VESPA SPRINT 2014 >, PRIMAVERA 2013 >-CM298802

	P2R reference	91370
	Maker reference	673641

BORDURE OF REST FOOT RIGHT CHROME OEM PIAGGIO 50-125 VESPA SPRINT 2014 >, PRIMAVERA 2013 >-673641

	P2R reference	91369
	Maker reference	673640

BORDURE OF REST FOOT LEFT CHROME OEM PIAGGIO 50-125 VESPA SPRINT 2014 >, PRIMAVERA 2013 >-673640

	P2R reference	153088
	Maker reference	CM298602

BORDURE OF REST FOOT LEFT BLACK OEM PIAGGIO 50-125 VESPA SPRINT 2014 >, PRIMAVERA 2013 >-CM2986025

	P2R reference	200095
	Maker reference	CM2986055

CM2986055-EDGE LATERAL LEFT

	P2R reference	200093
	Maker reference	CM2986085

CM2986085-EDGE LATERAL LEFT

	P2R reference	200094
	Maker reference	CM2986095

CM2986095-FOOTREST EDGE LEFT SIDE GREEN

	P2R reference	155061
	Maker reference	CM298603

BORDURE OF REST FOOT LEFT BLACK BRILLANT OEM PIAGGIO 50-125 VESPA SPRINT 2016 >-CM298603

	P2R reference	66301
	Maker reference	297498

SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498

	P2R reference	65363
	Maker reference	0138365

WASHER PLATE (3. 8X9X0. 5) OEM PIAGGIO COMMON A LA RANGE-013836

	P2R reference	91349
	Maker reference	673623

KIT BAGUETTE/PROFIL DE STEP FOOT OEM PIAGGIO 50-125 VESPA PRIMAVERA, SPRINT 2013 >-673623

	P2R reference	155298
	Maker reference	67361900HV

67361900HV-DOOR D'INSP. BUSH

	P2R reference	91335
	Maker reference	673619

HATCH DE SPARK PLUG OEM PIAGGIO 50-125 VESPA PRIMAVERA, SPRINT 2013 > UNPAINTED-673619

	P2R reference	73358
	Maker reference	CM178603

SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603

	P2R reference	109019
	Maker reference	157716

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716
