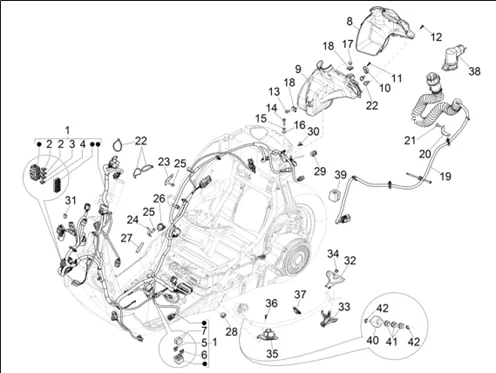

Vehicle Exploded View - VESPA VESPA ELECTTRICA 0 Vespa Elettrica 2018 (EMEA)

	P2R reference	155375
	Maker reference	1D002096

1D002096-WIRING HARNESS

	P2R reference	81846
	Maker reference	582930

BLADE FUSE STANDARD 3A OEM PIAGGIO COMMON A LA RANGE-582930

	P2R reference	77632
	Maker reference	291499

291499-FUSIBLE 7A

	P2R reference	66004
	Maker reference	252945

BLADE FUSE STANDARD 7, 5A OEM PIAGGIO COMMON A LA RANGE-252945

	P2R reference	66244
	Maker reference	290860

BLADE FUSE STANDARD 15A OEM PIAGGIO COMMON A LA RANGE-290860

	P2R reference	66254
	Maker reference	292507

BLADE FUSE STANDARD 10A OEM PIAGGIO COMMON A TOUTE LA RANGE-292507

	P2R reference	66241
	Maker reference	290404

COVER BOX A FUSIBLE OEM PIAGGIO COMMON A LA RANGE-290404

	P2R reference	155376
	Maker reference	1B004501

1B004501-PROTECTOR SUP.

	P2R reference	155377
	Maker reference	1B004502

1B004502-COVER INF. HANDLEBAR

	P2R reference	155378
	Maker reference	1B004540

1B004540-ARRET

	P2R reference	73372
	Maker reference	CM180701

SCREW TORX (4X16) TARAUD FAIRING OEM PIAGGIO COMMON A LA RANGE-CM180701

	P2R reference	73372
	Maker reference	CM180701

SCREW TORX (4X16) TARAUD FAIRING OEM PIAGGIO COMMON A LA RANGE-CM180701

	P2R reference	72723
	Maker reference	B016777

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

	P2R reference	41402
	Maker reference	874549

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-874549

	P2R reference	65416
	Maker reference	0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

	P2R reference	65366
	Maker reference	0138805

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

	P2R reference	68888
	Maker reference	830056

BUSH EN T (D5) MOLETEE CENTRAGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE-830056

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	155379
	Maker reference	1D001863

1D001863-CABLE

	P2R reference	155380
	Maker reference	1D0027725

1D0027725-CABLE

	P2R reference	155381
	Maker reference	1B005548

1B005548-CALIPER DE BRACKET

	P2R reference	73366
	Maker reference	CM179301

SCREW TORX (6X16) OEM PIAGGIO COMMON A LA RANGE-CM179301

	P2R reference	65742
	Maker reference	145298

HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298

	P2R reference	76168
	Maker reference	1D000228

1D000228-CALIPER

	P2R reference	76124
	Maker reference	1D000071

CLAMP SHEET METAL OEM PIAGGIO COMMON A LA RANGE-1D000071

	P2R reference	72723
	Maker reference	B016777

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

	P2R reference	72909
	Maker reference	CM006908

CLAMP MOUNTING (23MM) OEM PIAGGIO COMMON A LA RANGE-CM006908

	P2R reference	67280
	Maker reference	583282

583282-GASKET PROTECT ARR FX

	P2R reference	151376
	Maker reference	1D001098

1D001098-BRACKET

	P2R reference	72917
	Maker reference	CM013201

PINCE CLIPS FITTING KIT HOSE OEM PIAGGIO COMMON A LA RANGE-CM013201

	P2R reference	85755
	Maker reference	639560

CLIPS CONNECTEUR OEM PIAGGIO COMMON A LA RANGE-639560

	P2R reference	67302
	Maker reference	584520

SPRING DE CONNECTEUR OEM PIAGGIO COMMON A LA RANGE-584520

	P2R reference	155382
	Maker reference	1B005497

1B005497-BRACKET

	P2R reference	155383
	Maker reference	1B005496

1B005496-BRACKET

	P2R reference	70940
	Maker reference	969224

NUT FLANGE (D6) DE CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE-969224

	P2R reference	155384
	Maker reference	1B005488

1B005488-BRACKET

	P2R reference	73358
	Maker reference	CM178603

SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603

	P2R reference	127593
	Maker reference	1D001143

CLAMP SERRE CABLE OEM PIAGGIO COMMON A LA RANGE-1D001143

	P2R reference	86273
	Maker reference	641893

641893-PRISE CHARGE

	P2R reference	155385
	Maker reference	1D002780

1D002780-NUCLEO EMI

	P2R reference	86249
	Maker reference	641814

641814-NUCLEO EMI

	P2R reference	67134
	Maker reference	576565

GUIDE-CABLE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-576565

	P2R reference	75162
	Maker reference	191117

191117-CLAMP
