Vehicle Exploded View - VESPA VESPA ELECTTRICA 0 Vespa Elettrica 2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

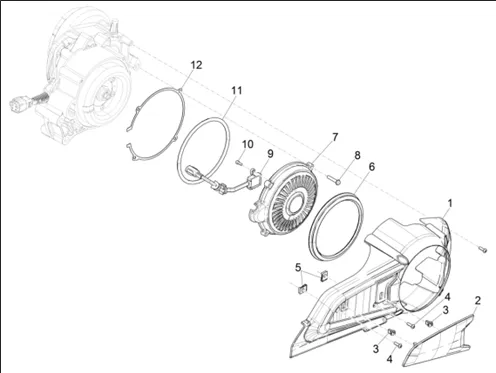

Moteur : 01.15 COUVERCLE CARTER - REFOIDISSEMENT CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1287/Vespa_Elettrica_2018_(EMEA)_01.15.png)
1 |
1B005538000HU-COVER More informationQuantity required : 1 |
||||||
|
2 |
1B005758-COVER More informationQuantity required : 1 |
||||||
|
2 |
1B005538-COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/4/img/73404.jpg)
3 |
AGRAPHE OEM PIAGGIO COMMON A TOUTE LA RANGE-D9004468091 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/2/8/img/70728.jpg)
4 |
SCREW TORX (5X16) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-880285 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
5 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419 More informationQuantity required : 2 |
||||||
|
6 |
1B005539-SURROUND More informationQuantity required : 1 |
||||||
|
7 |
1A009276-COVER TRANSMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
8 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792 More informationQuantity required : 4 |
||||||
|
9 |
CM291301-DETECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/1/8/img/70918.jpg)
10 |
SCREW BTR (4X16) OEM PIAGGIO COMMON A LA RANGE-959559 More informationQuantity required : 2 |
||||||
|
11 |
848983-GASKET More informationQuantity required : 1 |
||||||
|
12 |
1A010643-GASKET COVER More informationQuantity required : 1 |
