Vehicle Exploded View - VESPA VESPA 946 125 4T 3V ABS 2013-2015 VESPA

Moteur : 01.15 COUVERCLE CARTER - REFOIDISSEMENT CARTER

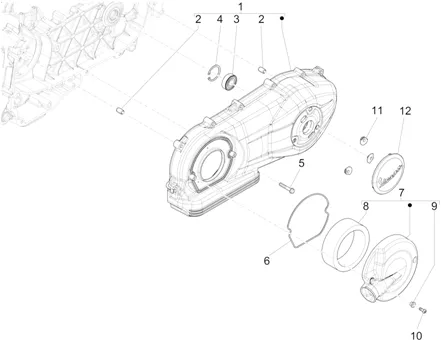

Couvercle carter - Refoidissement carter
Search
B0169455 - COUVERTURE DE TRANSMISSION

1
P2R reference P2R reference 94725
Maker reference Maker reference B0169455

B0169455-COVER DE TRANSMISSION

More information

Quantity required : 1

BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956

2
P2R reference P2R reference 72696
Maker reference Maker reference B015956

BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956

More information

Quantity required : 2

BEARING (15X35X11) OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-4789853

3
P2R reference P2R reference 66571
Maker reference Maker reference 4789853

BEARING (15X35X11) OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-4789853

More information

Quantity required : 1

CIRCLIPS (D = 38) OEM PIAGGIO COMMON A TOUTE LA RANGE-006635

4
P2R reference P2R reference 63823
Maker reference Maker reference 0066355

CIRCLIPS (D = 38) OEM PIAGGIO COMMON A TOUTE LA RANGE-006635

More information

Quantity required : 1

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

5
P2R reference P2R reference 66367
Maker reference Maker reference 414838

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

More information

Quantity required : 10

1A001027 - JOINT

6
P2R reference P2R reference 75337
Maker reference Maker reference 1A001027

1A001027-GASKET

More information

Quantity required : 1

B018342 - COUVERCLE DE REFROIDISSEMENT

7
P2R reference P2R reference 94824
Maker reference Maker reference B018342

B018342-COVER DE COOLING

More information

Quantity required : 1

B018345 - FILTRE A AIR

8
P2R reference P2R reference 94825
Maker reference Maker reference B018345

B018345-AIR FILTER

More information

Quantity required : 1

B015908 - BAGUE

9
P2R reference P2R reference 94670
Maker reference Maker reference B015908

B015908-BUSH

More information

Quantity required : 2

SCREW BTR HEAD BOMBEE (5X14) OEM PIAGGIO COMMON A LA RANGE-B016455

10
P2R reference P2R reference 72707
Maker reference Maker reference B016455

SCREW BTR HEAD BOMBEE (5X14) OEM PIAGGIO COMMON A LA RANGE-B016455

More information

Quantity required : 2

BUFFER/INSERT ARRET MOUNTING COVER TRANMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-871458

11
P2R reference P2R reference 70378
Maker reference Maker reference 871458

BUFFER/INSERT ARRET MOUNTING COVER TRANMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-871458

More information

Quantity required : 3

COVER CHROME CASING DE TRANSMISSION OEM PIAGGIO 125 VESPA LX 2005 >, PRIMAVERA 2013 >, SPRINT 2014 >, VESPA-S 2007 >, GTS 2013 > 20174-CM166001

12
P2R reference P2R reference 96208
Maker reference Maker reference CM166001

COVER CHROME CASING DE TRANSMISSION OEM PIAGGIO 125 VESPA LX 2005 >, PRIMAVERA 2013 >, SPRINT 2014 >, VESPA-S 2007 >, GTS 2013 > 20174-CM166001

More information

Quantity required : 1
