Vehicle Exploded View - VESPA VESPA 946 125 4T 3V ABS 2013-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

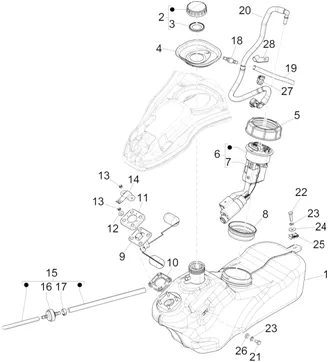

Châssis - parties plastiques - carrosseries : 02.47 RÉSERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/206/Vespa_946_125_4T_3V_ABS_2013-2015_02.47.PNG)
1 |
675673-TANK More informationQuantity required : 1 |
||||||
|
2 |
1B000184-CAP FUEL TANK (CONTROL EN CONCESSION UNIQUEMENT) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/0/7/img/68307.jpg)
3 |
GASKET CAP DE TANK OEM PIAGGIO COMMON A LA RANGE-656021 More informationQuantity required : 1 |
||||||
|
4 |
1B000259-CUVETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/3/img/67133.jpg)
5 |
NUT/BUSH PUMP OEM PIAGGIO COMMON A LA RANGE-576546 More informationQuantity required : 1 |
||||||
|
6 |
1D003704R-PUMP ELECTRIC More informationQuantity required : 1 |
||||||
|
7 |
639357-FILTER PUMP ELECTRIC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/8/1/img/127181.jpg)
8 |
GASKET OF JAUGE A FUEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-656003 More informationQuantity required : 1 |
||||||
|
9 |
680123-INDICATEUR More informationQuantity required : 1 |
||||||
|
10 |
781091-GASKET More informationQuantity required : 1 |
||||||
|
11 |
781090-FLASQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/2/img/65682.jpg)
12 |
WASHER PLATE (5. 3X14X1) OEM PIAGGIO COMMON A LA RANGE-097733 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/0/8/4/img/111084.jpg)
13 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-804457 More informationQuantity required : 4 |
||||||
|
14 |
1B000427-PLATE More informationQuantity required : 1 |
||||||
|
15 |
1B000111-VOLET More informationQuantity required : 1 |
||||||
|
16 |
576748-VOLET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/5/img/72875.jpg)
17 |
CLAMP (14. 5MM) SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001914 More informationQuantity required : 1 |
||||||
|
18 |
959591-FITTING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/2/img/72862.jpg)
19 |
HOSE/FUEL HOSE (5X10X1060) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-CM001432 More informationQuantity required : 1 |
||||||
|
20 |
1B001423-HOSE FOR CARBURETTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/7/img/65637.jpg)
21 |
SCREW TH (6X12) OEM PIAGGIO COMMON A LA RANGE-031086 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
22 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
23 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/8/img/65368.jpg)
24 |
WASHER PLATE (6, 2X18X2) OEM PIAGGIO COMMON A LA RANGE-013950 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
25 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/5/img/63805.jpg)
26 |
WASHER PLATE OEM PIAGGIO COMMON A LA RANGE-006175 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/0/img/72910.jpg)
27 |
CLAMP CLIPS OEM PIAGGIO COMMON A LA RANGE-CM006910 More informationQuantity required : 1 |
||||||
|
28 |
675126-BANDE More informationQuantity required : 1 |
