Vehicle Exploded View - VESPA VESPA 946 125 4T 3V ABS 2013-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

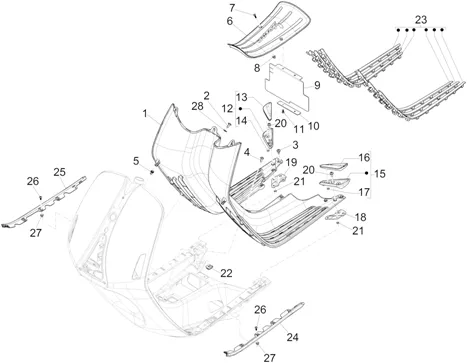

Châssis - parties plastiques - carrosseries : 02.31 PROTECTION CENTRALE - REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/206/Vespa_946_125_4T_3V_ABS_2013-2015_02.31.PNG)
1 |
675166-PARTIE CENTRE UNPAINTED More informationQuantity required : 1 |
||||||
|
1 |
6751660090-MAT CENTRAL More informationQuantity required : 1 |
||||||
|
1 |
67516600BR-MAT CENTRAL More informationQuantity required : 1 |
||||||
|
1 |
67516600DT-MAT CENTRAL More informationQuantity required : 1 |
||||||
|
1 |
67516600HF-MAT CENTRAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/2/8/img/70728.jpg)
2 |
SCREW TORX (5X16) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-880285 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/5/img/73365.jpg)
3 |
SCREW TORX (6X16) WITH EPAULEMENT OEM PIAGGIO COMMON A LA RANGE-CM179202 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
4 |
SCREW TORX (6X16) OEM PIAGGIO COMMON A LA RANGE-CM179301 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/4/img/73404.jpg)
5 |
AGRAPHE OEM PIAGGIO COMMON A TOUTE LA RANGE-D9004468091 More informationQuantity required : 2 |
||||||
|
6 |
675511-LID More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/0/img/96280.jpg)
7 |
SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178606 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
8 |
AGRAPHE/CHEVILLE A EXPANSION OEM PIAGGIO COMMON A TOUTE LE RANGE-199190 More informationQuantity required : 4 |
||||||
|
9 |
1B000311-PROTECTOR More informationQuantity required : 1 |
||||||
|
10 |
1B000312-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
11 |
SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603 More informationQuantity required : 2 |
||||||
|
12 |
1B000192-REST-FEET DEX. REMPLIR More informationQuantity required : 1 |
||||||
|
13 |
1B000192-REST-FEET DEX. REMPLIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
14 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105 More informationQuantity required : 2 |
||||||
|
15 |
1B000331-REST-FEET COMPLETE LEFT More informationQuantity required : 1 |
||||||
|
16 |
1B000331-REST-FEET COMPLETE LEFT More informationQuantity required : 1 |
||||||
|
17 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105 More informationQuantity required : 2 |
||||||
|
18 |
1B000278-BRACKET LEFT More informationQuantity required : 1 |
||||||
|
19 |
1B000279-BRACKET BRAKE PEDAL More informationQuantity required : 1 |
||||||
|
20 |
SCREW TORX (6X16) OEM PIAGGIO COMMON A LA RANGE-CM179301 More informationQuantity required : 4 |
||||||
|
21 |
1B000285-SPACER More informationQuantity required : 4 |
||||||
|
22 |
1B000372-NUT More informationQuantity required : 1 |
||||||
|
23 |
675530-PROFIL STEP FOOT (KIT) More informationQuantity required : 1 |
||||||
|
24 |
675593-COVER SPOILER GAU. More informationQuantity required : 1 |
||||||
|
25 |
675594 - COUVRE SPOILER DRT More informationQuantity required : 1 |
||||||
|
26 |
SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603 More informationQuantity required : 10 |
||||||
|
27 |
AGRAPHE/CHEVILLE A EXPANSION OEM PIAGGIO COMMON A TOUTE LE RANGE-199190 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/2/img/63802.jpg)
28 |
WASHER PLATE (5. 2X15X1) OEM PIAGGIO COMMON A LA RANGE-006078 More informationQuantity required : 2 |
