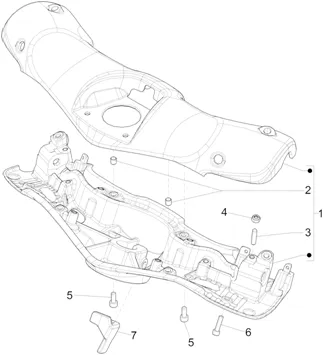

Guidon/direction : 03.01 COUVERTURES GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/206/Vespa_946_125_4T_3V_ABS_2013-2015_03.01.PNG)
1 |
1B0007275-BODY HANDLEBAR INF. More informationQuantity required : 1 |
||||||
|
1 |
1B0011335 - CORPS GUIDON INF. More informationQuantity required : 1 |
||||||
|
2 |
1B000401-STUD More informationQuantity required : 2 |
||||||
|
3 |
1B000428-STUD More informationQuantity required : 4 |
||||||
|
4 |
709116-NUT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/3/img/68493.jpg)
5 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-709099 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/6/img/65396.jpg)
6 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-015792 More informationQuantity required : 2 |
||||||
|
7 |
1B000621-PANEL More informationQuantity required : 1 |
