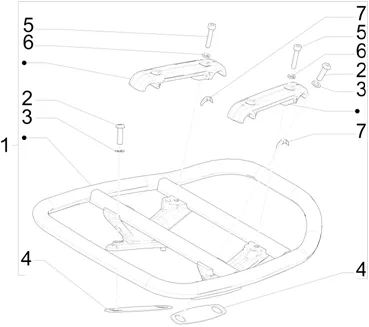

Châssis - parties plastiques - carrosseries : 02.44 PORTE-BAGAGES ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/206/Vespa_946_125_4T_3V_ABS_2013-2015_02.44.PNG)
1 |
1B001144-KIT DOOR BAGAGES REAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/9/8/img/69098.jpg)
2 |
SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-834038 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/8/img/63838.jpg)
3 |
WASHER SPRING (6, 4X11X0, 5) OEM PIAGGIO COMMON A LA RANGE-006966 More informationQuantity required : 4 |
||||||
|
4 |
1B000007-GASKET More informationQuantity required : 2 |
||||||
|
5 |
1B000692-SCREW More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
6 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 4 |
||||||
|
7 |
1B000006-GASKET More informationQuantity required : 8 |
