Vehicle Exploded View - DERBI VARIANT SPORT 125 Variant Sport 125 4T E3 2012 (APAC EMEA NAFTA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

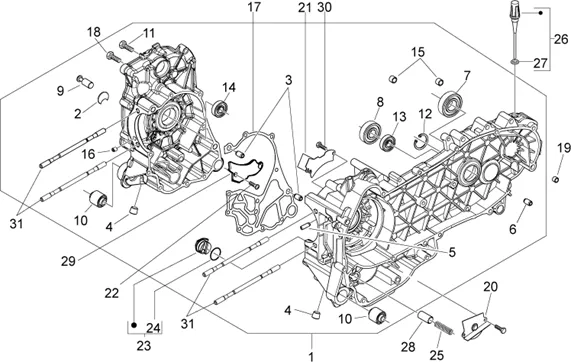

Moteur : 29.30 CARTER MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1065/Variant_Sport_125_4T_E3_2012_(APAC_EMEA_NAFTA)_29.30.png)
1 |
CM1485135002-CASING More informationQuantity required : 1 |
||||||
|
1 |
CM1485135001-CASING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/4/9/img/69149.jpg)
2 |
WASHER ARRET CASING ENGINE OEM PIAGGIO 125-200-250 2013 <-840489 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
3 |
BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/7/3/img/72673.jpg)
4 |
CAP (M12X1. 5X11) OEM PIAGGIO COMMON A LA RANGE-B015433 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/4/img/66654.jpg)
5 |
BUSE CASING MOREUR OEM PIAGGIO COMMON A LA RANGE-484034 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/7/img/66417.jpg)
6 |
BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/9/img/68899.jpg)
7 |
BEARING (15X42X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-83018R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/8/2/img/69082.jpg)
8 |
BEARING (20X47X14) DE REDUCTEUR (EX833701) OEM PIAGGIO COMMON A LA RANGE-1A024412R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/4/3/img/66643.jpg)
9 |
PIVOT SPRING DE STAND OEM PIAGGIO COMMON A LA RANGE-483785 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/4/img/66704.jpg)
10 |
RUBBER MOUNT DE CASING ENGINE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-486081 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/5/img/72705.jpg)
11 |
SCREW FLANGE TH (6X60) OEM PIAGGIO COMMON A LA RANGE-B016425 More informationQuantity required : 11 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/9/img/72699.jpg)
12 |
CLIPS/CIRCLIPS (25X26, 9X1, 2) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-B015959 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/5/img/68775.jpg)
13 |
GASKET SHAFT TRANSMISSION OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-82878R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/0/5/img/68805.jpg)
14 |
OIL SEAL (20X30X7) VILEBREQUIN COTE IGNITION OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, GTS 2007 >/125 NEXUS 2007 >, RUNNER 4T 2005 >-82898R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/7/img/72697.jpg)
15 |
PION DE CENTRAGE (11X10) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-B015957 More informationQuantity required : 2 |
||||||
|
16 |
844582-GICLEUR CASING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/3/img/70573.jpg)
17 |
GASKET OF CASING ENGINE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-875111 More informationQuantity required : 1 |
||||||
|
18 |
SCREW FLANGE TH (6X60) OEM PIAGGIO COMMON A LA RANGE-B016425 More informationQuantity required : 11 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
19 |
PION DE CENTRAGE (7, 5X12) OEM PIAGGIO COMMON A LA RANGE-277916 More informationQuantity required : 1 |
||||||
|
20 |
483767-PANEL INFERIEURE More informationQuantity required : 1 |
||||||
|
21 |
485047-PANEL SUPERIEURE More informationQuantity required : 1 |
||||||
|
22 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/7/1/img/69371.jpg)
23 |
BRACKET/INSERT OIL FILTER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-845861 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/8/8/img/66388.jpg)
24 |
O-RING INSERT DOOR FILTER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-431065 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/6/img/66686.jpg)
25 |
SPRING CASING OIL OEM PIAGGIO COMMON A LA RANGE-485655 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/9/1/img/68991.jpg)
26 |
JAUGE NIVEAU OIL TRANSMISSION OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS, RUNNER-832130 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/4/3/img/68643.jpg)
27 |
GASKET/BUSH ETANCHEITE (14, 43X9, 19X2, 62) OEM PIAGGIO COMMON A LA RANGE-827085 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/6/4/img/68864.jpg)
28 |
VALVE OF PRESSURE OIL OEM PIAGGIO COMMON A LA RANGE-829661 More informationQuantity required : 1 |
||||||
|
29 |
828766 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/0/img/68890.jpg)
30 |
SCREW FLANGE TH (5X16) OEM PIAGGIO COMMON A LA RANGE-830061 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/2/5/img/109025.jpg)
31 |
STUD DE CYLINDER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 250-300 CC-1A003628R More informationQuantity required : 4 |
