Vehicle Exploded View - DERBI VARIANT SPORT 125 Variant Sport 125 4T E3 2012 (APAC EMEA NAFTA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

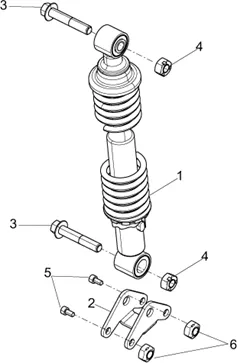

Cadre : 28.06 SUSPENSION ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1065/Variant_Sport_125_4T_E3_2012_(APAC_EMEA_NAFTA)_28.06.png)
1 |
666822-REAR SHOCK ABSORBER More informationQuantity required : 1 |
||||||
|
2 |
563324-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/1/img/69321.jpg)
3 |
SCREW BTR (8X50) OEM PIAGGIO COMMON A LA RANGE-844483 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/5/img/65455.jpg)
4 |
NUT (M8) OEM PIAGGIO COMMON A TOUTE LA RANGE-020008 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/9/img/66069.jpg)
5 |
SCREW FLANGE TH (10X55) MOUNTING REAR SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE-268158 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
6 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 2 |
