Vehicle Exploded View - DERBI VARIANT SPORT 125 Variant Sport 125 4T E3 2012 (APAC EMEA NAFTA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

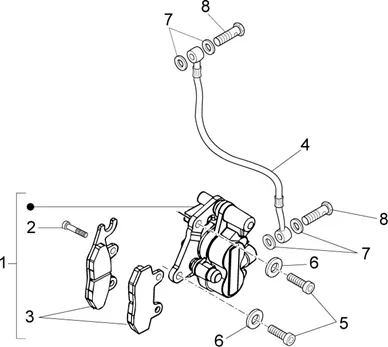

Cadre : 28.24 PINCE AV I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1065/Variant_Sport_125_4T_E3_2012_(APAC_EMEA_NAFTA)_28.24.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/8/3/img/72983.jpg)
1 |
CALIPER BRAKE FRONT OEM PIAGGIO 50-125 FLY 2006 > 2011 2T ET 4T, 50 TYPHOON 4T 2011 >/APRILIA 50 SR MOTARD 4T 2013 >, SPORT-CITY ONE 2008 >-CM068310 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/9/6/img/68396.jpg)
2 |
PIVOT/ROD BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-666139 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/0/4/img/68004.jpg)
3 |
BRAKE PAD OEM PIAGGIO 125 X-EVO AV, X8 AV, X9 AV, 125-300 VESPA GTS AV, 400 X-EVO AV + AR, 125 FLY AV/GILERA 800 GP AR/APRILIA 854 SRV AR, 125-300 SR-MAX AV + AR (PAIRE) (HENG-TONG)-647078 More informationQuantity required : 1 |
||||||
4 |
858543-TUBE BRAKE FRONT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/9/img/67369.jpg)
5 |
SCREW BTR (8X25) OEM PIAGGIO COMMON A LA RANGE-598919 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
6 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
7 |
GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927 More informationQuantity required : 4 |
||||||
|
8 |
651502-SCREW More informationQuantity required : 2 |
