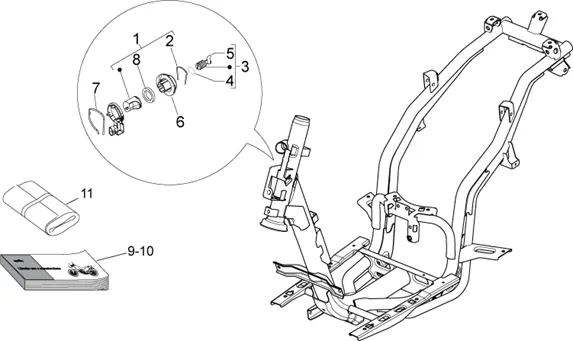

Cadre : 28.29 KIT SERRURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1065/Variant_Sport_125_4T_E3_2012_(APAC_EMEA_NAFTA)_28.29.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/0/7/2/img/154072.jpg)
1 |
BLOC LOCK SCOOT OEM PIAGGIO 50-125 FLY, LIBERTY, ZIP, VESPA LX, 125-250-400 X8, X-EVO, 125-250-300 VESPA GTS/GILERA 50 RUNNER/APRILIA 50-125 SR, SPORT-CITY-1B006291 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/9/img/66309.jpg)
2 |
SPRING D'ARRET SERRRURE OEM PIAGGIO COMMON A TOUTE LA RANGE-298838 More informationQuantity required : 1 |
||||||
3 |
635864-BARILLET A CLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/8/img/66308.jpg)
4 |
GASKET OF LOCK OEM PIAGGIO COMMON A TOUTE LA RANGE-298731 More informationQuantity required : 1 |
||||||
|
5 |
635865-EBAUCHE CLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/4/img/66304.jpg)
6 |
BODY DE LOCK OEM PIAGGIO 50 ZIP, NRG, TYPHOON, 50-125 VESPA LX, LIBERTY, FLY, 125-250-400 X-EVO, X8, BEVERLY, 125-250-300 CARNABY, X7, VESPA GTS, X10, 125-250-500 X9-1B002607 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/8/img/66008.jpg)
7 |
SPRING D'ARRET DE IGNITION SWITCH OEM PIAGGIO COMMON A TOUTE LA RANGE-253937 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/5/img/66305.jpg)
8 |
WASHER DE BLOC STEERING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-298594 More informationQuantity required : 1 |
||||||
|
9 |
|
||||||
|
11 |
TROUSSE OUTILS |
