Vehicle Exploded View - DERBI VARIANT SPORT 125 Variant Sport 125 4T E3 2012 (APAC EMEA NAFTA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

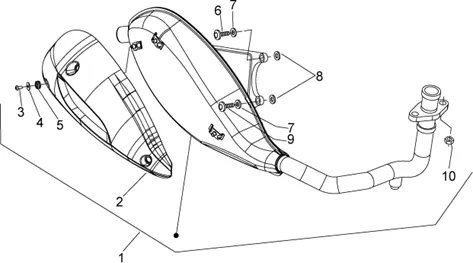

Cadre : 28.22 GROUPE D'ÉCHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1065/Variant_Sport_125_4T_E3_2012_(APAC_EMEA_NAFTA)_28.22.png)
1 |
877357-SILENCER More informationQuantity required : 1 |
||||||
|
2 |
843841-PROTECTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/7/3/img/68173.jpg)
3 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-651014 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/6/img/68676.jpg)
4 |
WASHER PLATE (5X16) SHEET METAL EXHAUST OEM PIAGGIO COMMON A TOUTE LA RANGE-827526 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/4/img/66744.jpg)
5 |
GUIDE CABLE (8X10X16) OEM PIAGGIO COMMON A TOUTE LA RANGE-487665 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/0/img/69320.jpg)
6 |
SCREW BTR (8X60) OEM PIAGGIO COMMON A LA RANGE-844470 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/4/img/65364.jpg)
7 |
WASHER PLATE (8, 2X20X2, 5) OEM PIAGGIO COMMON A LA RANGE-013861 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
8 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 2 |
||||||
|
9 |
872997-SCREW M8X55 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/9/img/66509.jpg)
10 |
NUT EXHAUST ON CYLINDER HEAD MAXI SCOOTER 125-250 X8, X-EVO, VESPA GTS, MP3, 125 LIBERTY, VESPA LX, PRIMAVERA/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC-436947 More informationQuantity required : 4 |
