Vehicle Exploded View - APRILIA TUAREG 660 Tuareg 660 Rally E5+ 2025 (EMEA-GSO)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

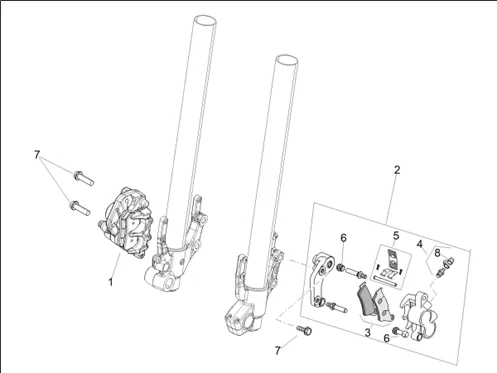

Système de freinage : 06.02 PINCE FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1298/Tuareg_660_Rally_E5_2025_(EMEA-GSO)_06.02.png)
1 |
2B007104 RIGHT FLOATING CALIPER More informationQuantity required : 1 |
||||||
|
2 |
2B007105 LEFT FLOATING CALIPER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/4/8/7/3/img/184873.jpg)
3 |
BRAKE PAD FRONT OEM APRILIA 660 TUAREG 2021 >-2B009668 More informationQuantity required : 2 |
||||||
|
4 |
2B009673 BLEEDING PLUG More informationQuantity required : 2 |
||||||
|
5 |
2B009676 SPARE PARTS AND PACKAGING More informationQuantity required : 2 |
||||||
|
6 |
2B009675 HOOD More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/5/img/71965.jpg)
7 |
SCREW FLANGE TH (10X35) OEM PIAGGIO COMMON A LA RANGE-AP8152318 More informationQuantity required : 4 |
||||||
|
8 |
AP8113070-CAPUCHON RENIFLARD More informationQuantity required : 2 |
