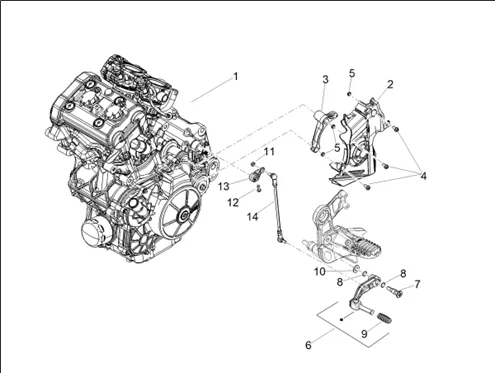

Vehicle Exploded View - APRILIA TUAREG 660 Tuareg 660 Rally E5+ 2025 (EMEA-GSO) APRILIA

Moteur : 03.01 MOTEUR-GROUPE COMPLEMENTAIRE
Moteur-Groupe complementaire
Search
CM2966245 - LIGHT EMEA E5 PLUS TUAREG 660 ENGINE

1
P2R reference P2R reference 219407
Maker reference Maker reference CM2966245

CM2966245-LIGHT EMEA E5 PLUS TUAREG 660 ENGINE

More information

Quantity required : 1

2B007311 - CARTER DE PIGNON

2
P2R reference P2R reference 184777
Maker reference Maker reference 2B007311

2B007311 CASING DE SPROCKET

More information

Quantity required : 1

2B005886 - CRANKCASE PROTECTION

3
P2R reference P2R reference 171534
Maker reference Maker reference 2B005886

2B005886 CRANKCASE PROTECTOR

More information

Quantity required : 1

SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277

4
P2R reference P2R reference 71941
Maker reference Maker reference AP8152277

SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277

More information

Quantity required : 3

BUSH EN T INNER 6 MM OEM PIAGGIO COMMON A LA RANGE-AP8121811

5
P2R reference P2R reference 71488
Maker reference Maker reference AP8121811

BUSH EN T INNER 6 MM OEM PIAGGIO COMMON A LA RANGE-AP8121811

More information

Quantity required : 3

SELECTEUR/LEVER DE SPEED OEM APRILIA 660 TUAREG 2021 >-2B009924

6
P2R reference P2R reference 184778
Maker reference Maker reference 2B009924

SELECTEUR/LEVER DE SPEED OEM APRILIA 660 TUAREG 2021 >-2B009924

More information

Quantity required : 1

PIVOT/SCREW OF PEDAL OF BRAKE REAR OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-2B012762

7
P2R reference P2R reference 215775
Maker reference Maker reference 2B012762

PIVOT/SCREW OF PEDAL OF BRAKE REAR OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-2B012762

More information

Quantity required : 1

O-RING (11, 11X1, 78) OEM PIAGGIO COMMON A LA RANGE-AP8144007

8
P2R reference P2R reference 71738
Maker reference Maker reference AP8144007

O-RING (11, 11X1, 78) OEM PIAGGIO COMMON A LA RANGE-AP8144007

More information

Quantity required : 2

RUBBER BRAKE LEVER REAR OU SELECTEUR OEM PIAGGIO FOR MOTORCYCLE-GUZZI/APRILIA-AP8120912

9
P2R reference P2R reference 71422
Maker reference Maker reference AP8120912

RUBBER BRAKE LEVER REAR OU SELECTEUR OEM PIAGGIO FOR MOTORCYCLE-GUZZI/APRILIA-AP8120912

More information

Quantity required : 1

WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020

10
P2R reference P2R reference 71811
Maker reference Maker reference AP8150020

WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020

More information

Quantity required : 1

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430

11
P2R reference P2R reference 71882
Maker reference Maker reference AP8150430

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430

More information

Quantity required : 1

SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044

12
P2R reference P2R reference 71815
Maker reference Maker reference AP8150044

SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044

More information

Quantity required : 1

2B010035 - GEARSHIFT CONTROL LEVER

13
P2R reference P2R reference 184779
Maker reference Maker reference 2B011146

2B011146-GEARSHIFT CONTROL LEVER

More information

Quantity required : 1

TRINGLE CONTROL DE SPEED OEM APRILIA 660 TUAREG 2021 >-2B009321

14
P2R reference P2R reference 184780
Maker reference Maker reference 2B009321

TRINGLE CONTROL DE SPEED OEM APRILIA 660 TUAREG 2021 >-2B009321

More information

Quantity required : 2
