Vehicle Exploded View - APRILIA TUAREG 660 Tuareg 660 Rally E5+ 2025 (EMEA-GSO)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

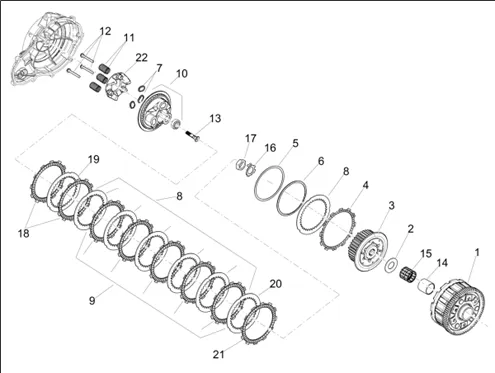

Moteur : 03.23 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1298/Tuareg_660_Rally_E5_2025_(EMEA-GSO)_03.23.png)
1 |
1A018690 RIVETED CLUTCH HOUSING ASSEMBLY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/3/1/2/img/43312.jpg)
2 |
WASHER CLUTCH OEM APRILIA COMMON A LA RANGE-974320 More informationQuantity required : 1 |
||||||
|
3 |
1A018699 CLUTCH HUB More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/9/4/4/img/174944.jpg)
4 |
DISC CLUTCH MENANT OEM APRILIA 660 RS, TUAREG, TUONO 2020 >-1A018702 More informationQuantity required : 1 |
||||||
|
5 |
1A018701 PLAIN WASHER FOR BELLEVILLI SPRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/1/4/img/146114.jpg)
6 |
SPRING A CUP CLUTCH OEM PIAGGIO 660 APRILIA RS, TUAREG 2020 >/900 SHIVER, DORSODURO 2017 >-879315 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/9/4/6/img/174946.JPG)
7 |
BRACKET SPRING A LAMES OEM APRILIA 660-1A018693 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/5/5/6/img/145556.jpg)
8 |
DISC CLUTCH MENE OEM PIAGGIO APRILIA 900 DORSODURO 2018, SHIVER 900 2019, 660 RS, TUAREG, TUONO 2020 >-2A000929 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/5/5/4/img/145554.jpg)
9 |
DISC CLUTCH MENANT OEM PIAGGIO DORSODURO, SHIVER, 660 RS, TUAREG, TUONO APRILIA-2A000927 More informationQuantity required : 5 |
||||||
|
10 |
1A018696 PRESSURE PLATE WITH I. P. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/9/4/8/img/174948.jpg)
11 |
SPRING CLUTCH OEM APRILIA 660 RS, TUAREG, TUONO 2020 >-1A018698 More informationQuantity required : 3 |
||||||
|
12 |
SCREW CLUTCH M6 OEM PIAGGIO COMMON A LA RANGE APRILIA 660 2020 <-1A018700 More informationQuantity required : 3 |
||||||
|
13 |
2A001091 ENCLIQUETAGE CLUTCH More informationQuantity required : 1 |
||||||
|
14 |
873543-SPACER More informationQuantity required : 1 |
||||||
|
15 |
974361-CAGE A AIGUILLE 35X40X35, 8 More informationQuantity required : 1 |
||||||
|
16 |
1A018089 WASHER More informationQuantity required : 1 |
||||||
|
17 |
876790-NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/9/5/2/img/174952.JPG)
18 |
DISC CLUTCH MENANT OEM APRILIA 660 RS, TUAREG, TUONO 2020 >-1A018694 More informationQuantity required : 2 |
||||||
|
19 |
1A018695 DRIVING PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/5/9/3/8/img/155938.jpg)
20 |
DISC CLUTCH OEM PIAGGIO APRILIA 900 DORSODURO 2018, SHIVER 900 2019, 660 RS, TUAREG, TUONO 2020 >-1A010613 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/5/9/3/9/img/155939.jpg)
21 |
DISC CLUTCH MENANT TOURNE OEM APRILIA 660 RS, TUAREG, TUONO 2020 >-1A010611 More informationQuantity required : 1 |
||||||
|
22 |
1A018703 RISE PLATE More informationQuantity required : 1 |
