Vehicle Exploded View - APRILIA TUAREG 660 Tuareg 660 Rally E5+ 2025 (EMEA-GSO)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

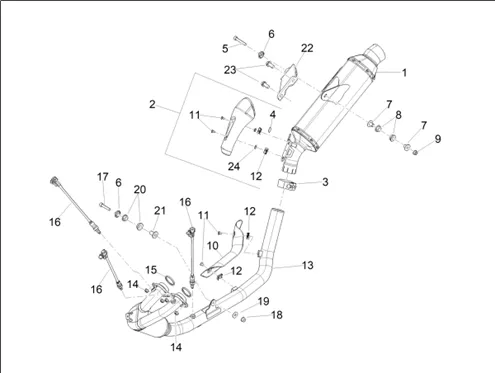

Moteur : 03.33 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1298/Tuareg_660_Rally_E5_2025_(EMEA-GSO)_03.33.png)
1 |
2B013310-SILENCER More informationQuantity required : 1 |
||||||
|
2 |
2B014928-COMPLETE SILENCER COVER More informationQuantity required : 1 |
||||||
|
3 |
2B010301-CLAMP More informationQuantity required : 1 |
||||||
|
4 |
2B013314 - CAPUCHON More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/9/img/71849.jpg)
5 |
SCREW BTR (8X50) OEM PIAGGIO COMMON A LA RANGE-AP8150277 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/4/3/img/46743.jpg)
6 |
BUSH SPACER DE SILENCER OEM APRILIA RSV4-AP8121199 More informationQuantity required : 2 |
||||||
|
7 |
AP8121332-BUSH More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/8/img/71768.jpg)
8 |
BUSH RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8144558 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
9 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 1 |
||||||
|
10 |
2B010903-MANIFOLD HEAT SHIELD More informationQuantity required : 1 |
||||||
|
11 |
2B011260-MROUNDED HEAD WITH HEXAGON SOCKET M6X12 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
12 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 4 |
||||||
|
13 |
2B014586-MANIFOLD ECHAP. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/9/img/66509.jpg)
14 |
NUT EXHAUST ON CYLINDER HEAD MAXI SCOOTER 125-250 X8, X-EVO, VESPA GTS, MP3, 125 LIBERTY, VESPA LX, PRIMAVERA/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC-436947 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/2/8/5/img/214285.jpg)
15 |
GASKET EXHAUST EN SORTIE DE CYLINDER HEAD OEM PIAGGIO APRILIA 1000-1100 RSV-4 2011 >, TUONO V4/MOTO-GUZZI 750 V7, 850 V85, V9-2B012220 More informationQuantity required : 2 |
||||||
|
16 |
1A024117-SONDE LAMDA More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/7/img/65747.jpg)
17 |
SCREW BTR (8X40) OEM PIAGGIO COMMON A LA RANGE-149104 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/2/5/img/70925.jpg)
18 |
NUT FLANGE (8X1. 25) OEM PIAGGIO COMMON A LA RANGE-967363 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
19 |
WASHER PLATE (8. 5X24X2) OEM PIAGGIO COMMON A LA RANGE-AP8150018 More informationQuantity required : 1 |
||||||
|
20 |
BUSH RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8144558 More informationQuantity required : 2 |
||||||
|
21 |
2B009827-BUSH More informationQuantity required : 1 |
||||||
|
22 |
2B010144 MUFFLER BRACKET More informationQuantity required : 1 |
||||||
|
23 |
2B011260-MROUNDED HEAD WITH HEXAGON SOCKET M6X12 More informationQuantity required : 2 |
||||||
|
24 |
2B011259-BUSH More informationQuantity required : 2 |
