Vehicle Exploded View - APRILIA TUAREG 660 Tuareg 660 Rally E5+ 2025 (EMEA-GSO)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

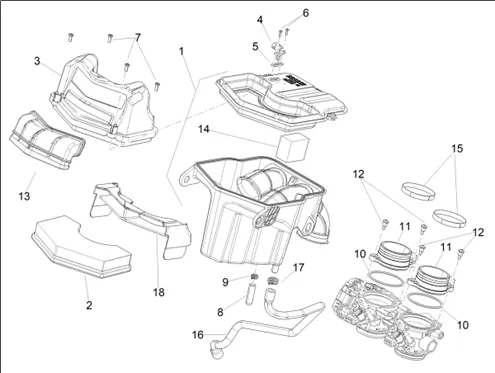

Moteur : 03.05 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1298/Tuareg_660_Rally_E5_2025_(EMEA-GSO)_03.05.png)
1 |
2B008951 AIR CLEANER BOX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/4/7/8/4/img/184784.jpg)
2 |
AIR FILTER OEM APRILIA 660 TUAREG 2021 >-2B011417 More informationQuantity required : 1 |
||||||
|
3 |
2B008924 FILTER COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/6/6/img/73466.jpg)
4 |
DETECTEUR DE TEMPERATURE AIR OEM APRILIA-MOTO-GUZZI COMMON A LA RANGE-GU30729330 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/5/9/img/73459.jpg)
5 |
GASKET DETECTEUR TEMPERATURE AIR OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-GU30027931 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
6 |
SCREW CRUCIFORME (2. 9X12) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150421 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
7 |
SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/0/5/img/72005.JPG)
8 |
CAPUCHON DE BODY DE FILTER OEM PIAGGIO COMMON ALA RANGE APRILIA/MOTO GUZZI-AP8161054 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/2/img/71182.jpg)
9 |
CLAMP SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-AP8102520 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/9/5/3/img/41953.jpg)
10 |
O-RING (56. 82X2. 62) BODY DE FILTER OEM APRILIA COMMON A LA RANGE-893240 More informationQuantity required : 2 |
||||||
|
11 |
2B008929 ARM More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/9/3/3/img/41933.jpg)
12 |
SCREW AIR FILTER OEM PIAGGIO APRILIA 1200 CAPONORD, DORSODURO, 1000 RSV-4, TUONO-893132 More informationQuantity required : 4 |
||||||
|
13 |
2B008928 SUCTION HOSE More informationQuantity required : 1 |
||||||
|
14 |
AP8104525-FILTER BLOW-BY More informationQuantity required : 1 |
||||||
|
15 |
2B009125 CLAMP More informationQuantity required : 2 |
||||||
|
16 |
2B008923 BLOW BY TANK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/0/img/72890.jpg)
17 |
HOSE CLAMP HOSE (7X10) OEM PIAGGIO COMMON A LA RANGE-CM002903 More informationQuantity required : 1 |
||||||
|
18 |
2B010034 SOUND DAMPER More informationQuantity required : 1 |
