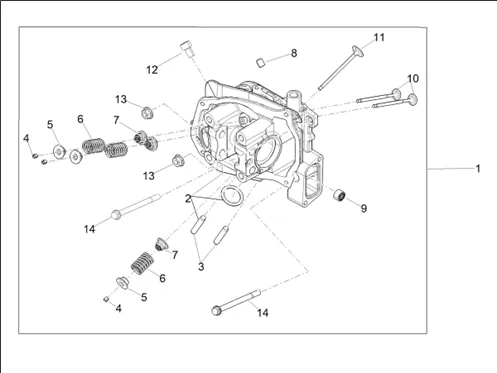

Moteur : 01.10 ENSEMBLE CULASSE - SOUPAPE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1315/SXR_50_4T_3V_E5_HE_NEW_COMFORT_MY2025_(EMEA)_01.10.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/1/9/6/7/img/181967.jpg)
1 |
CYLINDER HEAD OEM PIAGGIO 50 SXR APRILIA 2021 >-1A016511 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/5/8/img/66458.jpg)
2 |
GASKET EXHAUST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC COOLING PER AIR-434716 More informationQuantity required : 1 |
||||||
3 |
1A019563 - STUD SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/6/4/5/img/94645.jpg)
4 |
HALF LUNE VALVE OEM PIAGGIO 125 MEDLEY, GTS, PRIMAVERA 2013 >/SR GT APRILIA 2021 >-B015484 More informationQuantity required : 3 |
||||||
|
5 |
1A019562 - UPPER CUP More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/7/6/img/69376.jpg)
6 |
SPRING DE VALVE OEM PIAGGIO 50 4T LIBERTY, ZIP, PRIMAVERA 2013 >/SXR APRILIA 2021 >-845951 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/7/6/img/69276.jpg)
7 |
GASKET OF VALVE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T ET MAXI SCOOTER 125 CC COOLING PER AIR-843307 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/6/img/66476.jpg)
8 |
PION DE CENTRAGE N- 2 OEM PIAGGIO COMMON A LA RANGE-435571 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/1/0/img/127210.jpg)
9 |
BEARING AIGUILLE (9X13X8) DE CULLASSE OEM PIAGGIO 50 4T ZIP, PRIMAVERA, LIBERTY, SXR 2017 >-1A000511 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/1/4/img/178614.jpg)
10 |
VALVE INTAKE OEM PIAGGIO 50 SXR APRILIA 2021-1A019560 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/1/5/img/178615.jpg)
11 |
VALVE EXHAUST Ø 18 OEM PIAGGIO 50 SXR APRILIA 2021-1A019561 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
12 |
SCREW BTR (8X12) OEM PIAGGIO COMMON A LA RANGE-269755 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/9/2/0/5/img/159205.jpg)
13 |
NUT FLANGE (M8X1. 25) OEM PIAGGIO COMMON A LA RANGE-B016939 More informationQuantity required : 4 |
||||||
|
14 |
874556-SCREW More informationQuantity required : 2 |
All the exploded views of this vehicle
-
-
