Vehicle Exploded View - APRILIA SXR 50 4T 3V E5 HE NEW COMFORT MY2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

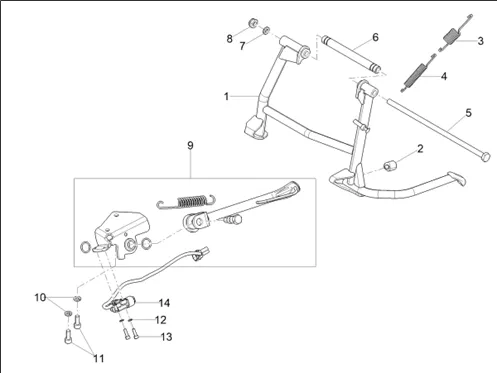

Châssis - parties plastiques - carrosseries : 02.25 BÉQUILLE/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1315/SXR_50_4T_3V_E5_HE_NEW_COMFORT_MY2025_(EMEA)_02.25.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/0/3/img/178503.jpg)
1 |
CENTRE STAND OEM PIAGGIO 50 SXR APRILIA 2021 >-1C007475 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/1/8/7/img/164187.jpg)
2 |
BUFFER RUBBER DE STAND OEM PIAGGIO 50 SXR APRILIA 2021 >-666484 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/2/5/3/img/90253.jpg)
3 |
SPRING DE CENTRE STAND (GROS) OEM PIAGGIO 400 BEVERLY, MP3 2020 >/50 SXR APRILIA 2021 >-667567 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/2/5/2/img/90252.jpg)
4 |
SPRING DE CENTRE STAND (PETIT) OEM PIAGGIO 400 BEVERLY, MP3 2020 >/50 SXR APRILIA 2021 >-667566 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/2/1/0/img/146210.jpg)
5 |
SPINDLE/SCREW OEM MOPED SWINGARM OEM PIAGGIO 50 LIBERTY 2015 >/50 SXR APRILIA 2021 >-597043 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/1/8/6/img/164186.jpg)
6 |
SPACER DE STAND OEM PIAGGIO 50 SXR APRILIA 2021 >-668585 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/7/img/66127.jpg)
7 |
GASKET SHAFT OF STAND OEM PIAGGIO COMMON A LA RANGE-273754 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
8 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/0/4/img/178504.jpg)
9 |
SIDE STAND OEM PIAGGIO APRILIA 50 SXR 2021 > (MONTE OEM)-1C005388 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
10 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/9/4/3/2/img/209432.JPG)
11 |
SCREW THC M8X20X8. 8 OEM PIAGGIO COMMON A LA RANGE-1C006239 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
12 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/7/img/66257.jpg)
13 |
SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-2928896 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/4/0/2/img/86402.jpg)
14 |
642559 - BOUTON More informationQuantity required : 1 |
|||||||||
