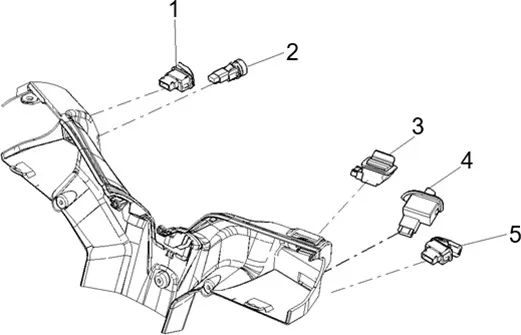

Circuit électrique : 06.01 INVERSEURS - COMMUTATEURS - BOUTONS - INTERRUPTEURS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1315/SXR_50_4T_3V_E5_HE_NEW_COMFORT_MY2025_(EMEA)_06.01.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/2/1/6/img/86216.jpg)
1 |
BUTTON DEMARRAGE OEM PIAGGIO 50 TYPHOON 2018 >, 125-250-300 MP3, X7, VESPA GTS/APRILIA 50 SR MOTARD 2018 >-641609 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/2/6/3/img/86263.jpg)
2 |
BUTTON MODE OEM PIAGGIO COMMON A LA RANGE-641859 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/8/2/img/67982.jpg)
3 |
SWITCH CODE/HEADLAMP OEM PIAGGIO 125-250-300-400 500 MP3 2008 > 2014, 125-250-400 X8 2004 > 2006, X9, X-EVO 2007 >, BEVERLY/GILERA 125 RUNNER 4T, 500 FUOCO/APRILIA 125-250-400 SCARABEO-642670 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/8/4/img/67984.jpg)
4 |
SWITCH INDICATOR SCOOT OEM PIAGGIO 50 ZIP, TYPHOON, FLY, LYBERTY, 125-250-400 MP3, BEVERLY, X-EVO, X8/GILERA 50 STALKER, RUNNER/APRILIA 50 SR-6426795 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/2/3/4/img/86234.jpg)
5 |
BUTTON/CONTACTEUR AVERTISSEUR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-641743 More informationQuantity required : 1 |
