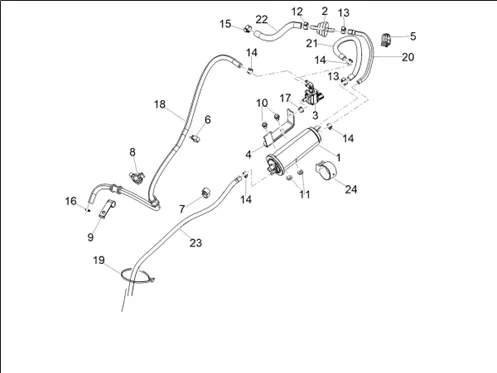

Châssis - parties plastiques - carrosseries : 02.61 SYSTÈME ANTI-ÉVAPORATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1315/SXR_50_4T_3V_E5_HE_NEW_COMFORT_MY2025_(EMEA)_02.61.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/7/3/3/img/174733.jpg)
1 |
CANISTER OEM PIAGGIO 50-125 COMMON A LA RANGE 2021 >-1B002848 More informationQuantity required : 1 |
||||||
2 |
VALVE OF PRESSURE SYSTEME ANTI-EVAPORATION OEM PIAGGIO EURO 5 COMMON A LA RANGE-CM292102 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/9/0/img/178690.jpg)
3 |
VANNE DE PURGE OEM PIAGGIO 50 SXR 2021 >-1A017882 More informationQuantity required : 1 |
||||||
|
4 |
1B007684-CANISTER PLATE BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/9/img/72909.jpg)
5 |
CLAMP MOUNTING (23MM) OEM PIAGGIO COMMON A LA RANGE-CM006908 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/7/img/65967.jpg)
6 |
CLIPS SPRING (D17) OEM PIAGGIO COMMON A LA RANGE-231590 More informationQuantity required : 1 |
||||||
|
7 |
667156-CLAMP More informationQuantity required : 1 |
||||||
|
8 |
CM006913-SPRING More informationQuantity required : 1 |
||||||
|
9 |
1B009617-CLAMP/BRAKE LINE (BV-500) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/9/img/70959.jpg)
10 |
SCREW FLANGE TH (6X10) OEM PIAGGIO COMMON A LA RANGE-969296 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
11 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/5/img/72875.jpg)
12 |
CLAMP (14. 5MM) SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001914 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/3/img/72863.jpg)
13 |
CLAMP SERRE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001901 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/3/img/72873.jpg)
14 |
CLAMP HOSE (D10. 5) OEM PIAGGIO COMMON A LA RANGE-CM0019126 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/4/img/72874.jpg)
15 |
CLAMP (12-22MM) SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001913 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/0/img/72890.jpg)
16 |
HOSE CLAMP HOSE (7X10) OEM PIAGGIO COMMON A LA RANGE-CM002903 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/6/img/149096.jpg)
17 |
NUT FLANGE (M6) OEM PIAGGIO COMMON A LA RANGE-241936 More informationQuantity required : 1 |
||||||
|
18 |
1B009035-MANIFOLD WITH GROMMET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
19 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 1 |
||||||
|
20 |
CM283437 HOSE More informationQuantity required : 1 |
||||||
|
21 |
CM001239-FUEL MANIFOLD NOT METALLIC More informationQuantity required : 1 |
||||||
|
22 |
CM177985-HOSE More informationQuantity required : 1 |
||||||
|
23 |
CM283431 MANIFOLD FUEL STEAM More informationQuantity required : 1 |
||||||
|
24 |
1B002849 PLATE More informationQuantity required : 1 |
