Vehicle Exploded View - APRILIA SXR 50 4T 3V E5 HE NEW COMFORT MY2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

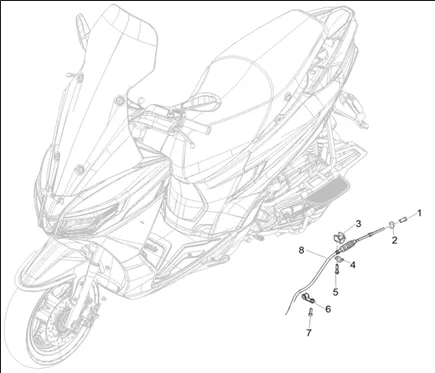

Instalation du freins - transmisisons : 05.03 TRANSMISISONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1315/SXR_50_4T_3V_E5_HE_NEW_COMFORT_MY2025_(EMEA)_05.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/8/img/66088.jpg)
1 |
NUT REGLAGE BRAKE REAR OEM PIAGGIO COMMON A LA RANGE-270310 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/4/img/65794.jpg)
2 |
PIVOT TRANSMISSION BRAKE REAR OEM PIAGGIO COMMON A TOUTE LA RANGE-179640 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/9/1/4/img/152914.jpg)
3 |
SPACER CLIP TRANSMISSION OEM PIAGGIO COMMON A LA RANGE-1C001642 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/7/2/img/67072.jpg)
4 |
PLATE OF FITTING KIT GANIE OEM PIAGGIO COMMON A LA RANGE-564645 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/7/0/img/178670.jpg)
5 |
SCREW (6X35) OEM PIAGGIO COMMON A LA RANGE-1C004766 More informationQuantity required : 1 |
||||||
6 |
1C005865 CLAMP WITH IP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/7/img/68497.jpg)
7 |
SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-709674 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/7/2/img/178672.jpg)
8 |
CABLE/CONTROL/TRANSMISSION OF BRAKE REAR OEM PIAGGIO 50 SXR APRILIA 2021 >-1C005857 More informationQuantity required : 1 |
