Vehicle Exploded View - GILERA STORM 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

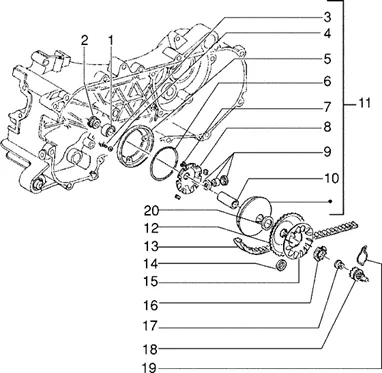

Moteur : T8 POULIE MOTRICE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/652/Storm_1998-2005_T8.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/5/9/2/img/157592.jpg)
0 |
TRANSMISSION KIT"PIAGGIO GENUINE PARTS" BELT,ROLLERS,GUIDES- 50 TYPHOON, NRG, VESPA PRIMAVERA/APRILIA 50 SR/GILERA 50 STALKER, RUNNER -1R000424 More informationQuantity required : 1 |
||||||
1 |
289829-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/6/0/img/66160.jpg)
2 |
HUB/PULLEY ENTRAINEMENT OF PUMP A OIL OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-286158 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
3 |
SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/6/img/63836.jpg)
4 |
WASHER SPRING (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-006964 More informationQuantity required : 3 |
||||||
|
5 |
COUVERCLE |
||||||
|
6 |
289926 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/3/4/img/66234.jpg)
7 |
GUIDE/PATIN DE VARIATOR OEM PIAGGIO 50 ZIP 1996 >, TYPHOON 1996 >, FLY 2005 >, LIBERTY 1998 >, NRG 1998 >, VESPA LX 2005 >, VESPA-S 2007 >/GILERA 50 STALKER, RUNNER 1997 >/APRILIA 50 SR 2011 >-289931 More informationQuantity required : 3 |
||||||
|
8 |
289930-CUVETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/3/3/img/66233.jpg)
9 |
GALET/ROLLER OEM PIAGGIO 50 NRG, SFERA, TYPHOON, ZIP RST, VESPA ET2 (GALET D 16 MM) (SET OF 6)-2899275 More informationQuantity required : 6 |
||||||
|
9 |
436077-SPACER More informationQuantity required : 6 |
||||||
|
10 |
289829-SPACER More informationQuantity required : 1 |
||||||
|
11 |
430189 - COUVERCLE More informationQuantity required : 1 |
||||||
|
11 |
436081 - EMBRAYAGE AV. ZIP (PAYS-BAS) More informationQuantity required : 1 |
||||||
|
12 |
289831 - SEMI POULIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/8/4/img/66384.jpg)
13 |
BELT "PIAGGIO GENUINE PART" 50 NRG 1998>2002, TYPHOON 1996>2002 -430728 More informationQuantity required : 1 |
||||||
|
14 |
RONDELLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/5/3/3/img/77533.jpg)
15 |
FAN - DRIVING PULLEY "PIAGGIO GENUINE PART" COMMUN A LA GAMME SCOOTER 50 2 STROKE 1995>1999 -287044- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/6/0/7/img/78607.jpg)
16 |
KICK STARTER PINION "PIAGGIO GENUINE PART"50 TYPHOON, ZIP, VESPA ET2, NRG, SFERA 1998>2004 -433862 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/5/img/66225.jpg)
17 |
NUT DE VARIATOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-289519 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/3/3/img/66633.jpg)
18 |
OEM SCOOTER KICK SCOOT OEM PIAGGIO 50 2T ET 4T FLY, LIBERTY, NRG, TYPHOON, ZIP, VESPA LX, PRIMAVERA/GILERA 50 STALKER, RUNNER/APRILIA 50 SR-483537 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/1/img/68901.jpg)
19 |
SPRING OF KICK OEM PIAGGIO 50-125 LIBERTY, VESPA LX, VESPA-S, 50 TYPHOON, 50 FLY, 50 NRG/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, MOJITO-288673 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/3/4/img/73034.jpg)
20 |
SPACER DE PULLEY MOTRICE (20X26X2. 5) OEM PIAGGIO 50 ZIP 4T 2013 <-CM100603 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/3/9/img/73039.jpg)
20 |
SPACER PULLEY MOTRICE OEM PIAGGIO 50 2T COMMON A LA RANGE 2017 <-CM100609 More informationQuantity required : 1 |
