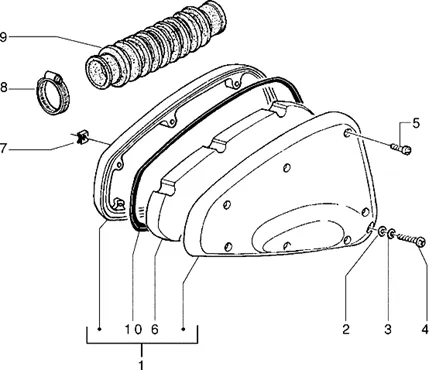

Vehicle Exploded View - GILERA STORM 50 1998-2005

	P2R reference	78672
	Maker reference	436066

AIR FILTER HOUSING "PIAGGIO GENUINE PART" 50 TYPHOON 1996>2003 -436066

More information

Quantity required : 1

	P2R reference	65345
	Maker reference	0125335

WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533

More information

Quantity required : 2

	P2R reference	65366
	Maker reference	0138805

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

More information

Quantity required : 2

	P2R reference	65448
	Maker reference	0186405

SCREW CRUCIFORME (6X50) OEM PIAGGIO COMMON A TOUTE LA RANGE-018640

More information

Quantity required : 2

	P2R reference	66025
	Maker reference	258146

SCREW AUTOTARAUDEUSE (3X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-258146

More information

Quantity required : 6

	P2R reference	157085
	Maker reference	4334370P

ELEMENT/MOUSSE DE AIR FILTER (PREMIUM) SCOOT OEM PIAGGIO 50 TYPHOON 1997 > 1999, NRG 1997 > 1999, NTT 1997 > 1999-4334370P

More information

Quantity required : 1

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 2

	P2R reference	66017
	Maker reference	257134

HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134

More information

Quantity required : 1

	P2R reference	78573
	Maker reference	431910

SLEEVE DE CAPTAGE DE AIR FILTER OEM PIAGGIO 50 TYPHOON, ZIP RST, NRG 1998 > 2005-431910

More information

Quantity required : 1

	P2R reference	78572
	Maker reference	431908

431908 - JOINT FILTRE A AIR

More information

Quantity required : 1
