Vehicle Exploded View - GILERA STORM 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

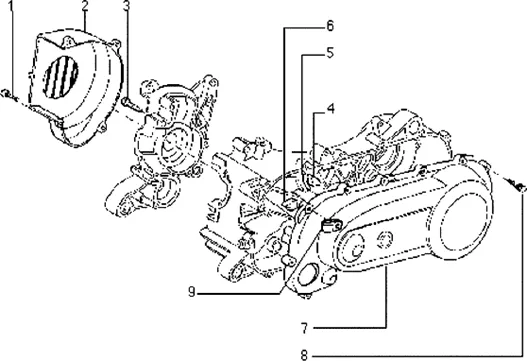

Moteur : T6 COUVERCLE D'EMBRAYAGE-COUVERCLE LIMAÇON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/652/Storm_1998-2005_T6.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/9/img/65399.jpg)
1 |
SCREW CRUCIFORME (5X21) OEM PIAGGIO COMMON A LA RANGE-015856 More informationQuantity required : 4 |
||||||
2 |
286935 - CARTER VENTILATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/6/9/img/72769.jpg)
3 |
SCREW FLANGE TH (6X45) OEM PIAGGIO COMMON A LA RANGE-B017632 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/6/6/img/66166.jpg)
4 |
BUFFER ARRET OEM PIAGGIO COMMON A LA RANGE 2003 <-286207 More informationQuantity required : 1 |
||||||
|
5 |
286206 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/3/7/img/66537.jpg)
6 |
BUFFER STAND OEM PIAGGIO COMMON A LA RANGE-463872 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/5/6/img/68756.jpg)
7 |
COVER DE TRANSMISSION OEM PIAGGIO 50 2T TYPHOON 2006 > 2010, NRG 2006 >, VESPA PRIMAVERA 2013 >, SPRINT 2014 >/GILERA 50 RUNNER 2000 >/APRILIA 50 SR H2O 2004 >, MOJITO 2004 >-8284535 More informationQuantity required : 1 |
||||||
|
8 |
030054-SCREW S03005400 More informationQuantity required : 15 |
||||||
|
9 |
271451-CLAMP More informationQuantity required : 1 |
