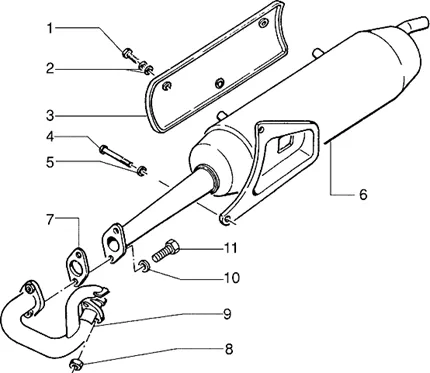

Vehicle Exploded View - GILERA STORM 50 1998-2005 GILERA

Moteur : T17 SILENCIEUX
Silencieux
Search
256756 - BOULON

1
P2R reference P2R reference 66016
Maker reference Maker reference 256756

256756-BOLT

More information

Quantity required : 9

259213 - BOULON

1
P2R reference P2R reference 77068
Maker reference Maker reference 259213

259213 - BOULON

More information

Quantity required : 3

WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404

2
P2R reference P2R reference 65414
Maker reference Maker reference 0164045

WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404

More information

Quantity required : 3

257712 - PROTECTION

3
P2R reference P2R reference 77038
Maker reference Maker reference 257712

257712 - PROTECTION

More information

Quantity required : 1

431749 - PROTECTION

3
P2R reference P2R reference 78568
Maker reference Maker reference 431749

431749 - PROTECTION

More information

Quantity required : 1

PROTECTION

3
P2R reference P2R reference
Maker reference Maker reference 431929

PROTECTION

SCREW OEM PIAGGIO COMMON ALA RANGE-463810

4
P2R reference P2R reference 78751
Maker reference Maker reference 463810

SCREW OEM PIAGGIO COMMON ALA RANGE-463810

More information

Quantity required : 1

SCREW FLANGE BTR (8X60) OEM PIAGGIO COMMON A LA RANGE-018583

4
P2R reference P2R reference 65444
Maker reference Maker reference 0185835

SCREW FLANGE BTR (8X60) OEM PIAGGIO COMMON A LA RANGE-018583

More information

Quantity required : 1

WASHER ELASTIC (8X14X2) OEM PIAGGIO COMMON A LA RANGE HISTORIQUE < 2005-431744

5
P2R reference P2R reference 78567
Maker reference Maker reference 431744

WASHER ELASTIC (8X14X2) OEM PIAGGIO COMMON A LA RANGE HISTORIQUE < 2005-431744

More information

Quantity required : 4

433973 - SILENCIEUX

6
P2R reference P2R reference 78614
Maker reference Maker reference 433973

433973 - SILENCIEUX

More information

Quantity required : 1

435490 - SILENCIEUX ECHPT

6
P2R reference P2R reference 78659
Maker reference Maker reference 435490

435490 - SILENCIEUX ECHPT

More information

Quantity required : 1

463807 - SILENCIEUX ECHPT

6
P2R reference P2R reference 78750
Maker reference Maker reference 463807

463807 - SILENCIEUX ECHPT

More information

Quantity required : 1

SILENCIEUX

6
P2R reference P2R reference
Maker reference Maker reference 478379

SILENCIEUX

GASKET- FROM PIPE TO EXHAUST MAIN BODY "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 1995>1999 -259198-

7
P2R reference P2R reference 77066
Maker reference Maker reference 259198

GASKET- FROM PIPE TO EXHAUST MAIN BODY "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 1995>1999 -259198-

More information

Quantity required : 1

NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245

8
P2R reference P2R reference 66187
Maker reference Maker reference 288245

NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245

More information

Quantity required : 2

020006 - ECROU

8
P2R reference P2R reference 65453
Maker reference Maker reference 0200065

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020006

More information

Quantity required : 2

433846 - TUBE ECHPT

9
P2R reference P2R reference 78605
Maker reference Maker reference 433846

433846-TUBE ECHPT

More information

Quantity required : 1

EXHAUST PIPE "PIAGGIO GENUINE PART" 50 TYPHOON, ZIP, LIBERTY 1998>2003 -433848-

9
P2R reference P2R reference 78606
Maker reference Maker reference 433848

EXHAUST PIPE "PIAGGIO GENUINE PART" 50 TYPHOON, ZIP, LIBERTY 1998>2003 -433848-

More information

Quantity required : 1

TUBE

9
P2R reference P2R reference
Maker reference Maker reference 436746

TUBE

COURBE ECHAPPEMENT NRG

9
P2R reference P2R reference
Maker reference Maker reference 482830

COURBE ECHAPPEMENT NRG

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

10
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

More information

Quantity required : 2

SCREW TH (6X18) OEM PIAGGIO COMMUNA LA RANGE-031089

11
P2R reference P2R reference 65640
Maker reference Maker reference 0310895

SCREW TH (6X18) OEM PIAGGIO COMMUNA LA RANGE-031089

More information

Quantity required : 1

432002 - PROTECTION

12
P2R reference P2R reference 78574
Maker reference Maker reference 432002

432002 - PROTECTION

More information

Quantity required : 1

PROTECTION

12
P2R reference P2R reference
Maker reference Maker reference 434583

PROTECTION

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

13
P2R reference P2R reference 63779
Maker reference Maker reference 0030585

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

More information

Quantity required : 2

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

14
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

More information

Quantity required : 1

435028 - VIS

15
P2R reference P2R reference 66468
Maker reference Maker reference 435028

435028-SCREW

More information

Quantity required : 1

WASHER PLATE (8, 2X20X2, 5) OEM PIAGGIO COMMON A LA RANGE-013861

16
P2R reference P2R reference 65364
Maker reference Maker reference 0138615

WASHER PLATE (8, 2X20X2, 5) OEM PIAGGIO COMMON A LA RANGE-013861

More information

Quantity required : 10

GASKET OBTURATEUR EXHAUST COMMON A L ENSEMBLE DE LA RANGE-016195

17
P2R reference P2R reference 65412
Maker reference Maker reference 0161955

GASKET OBTURATEUR EXHAUST COMMON A L ENSEMBLE DE LA RANGE-016195

More information

Quantity required : 1

SCREW/CAP EXHAUST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-433122

18
P2R reference P2R reference 66433
Maker reference Maker reference 433122

SCREW/CAP EXHAUST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-433122

More information

Quantity required : 1
