Vehicle Exploded View - GILERA STORM 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

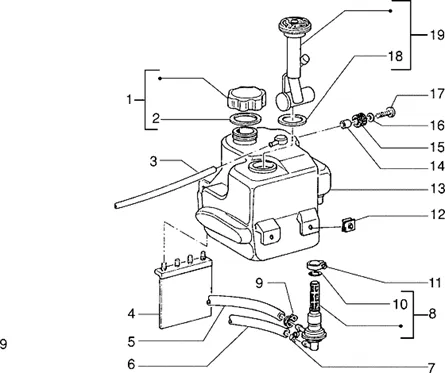

Châssis : T21 RESERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/652/Storm_1998-2005_T21.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/4/img/66044.jpg)
1 |
CAP FUEL OEM PIAGGIO 50-125-250-300 X7, X8, X-EVO, X9, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, ZIP, TYPHOON, VESPA PRIMAVERA/APRILIA 50-125 SR-MOTARD, SPORT-CITY-259832 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/6/img/66026.jpg)
2 |
GASKET OF CAP FUEL OEM PIAGGIO COMMON A LA RANGE-258160 More informationQuantity required : 1 |
||||||
3 |
CM0012096-FUEL HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/4/5/1/img/114451.jpg)
3 |
FUEL HOSE OEM PIAGGIO 50-125 TYPHOON 1998 > 2004, THREE-WHEELER APE 2005 <-CM002609 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/8/2/7/img/77827.jpg)
4 |
BATTERY BACK PROTECTION - CHROME "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON, NRG 1995>2000 -295403 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/1/9/img/65919.jpg)
5 |
HOSE/FUEL HOSE OEM PIAGGIO COMMON A TOUTE LA RANGE (ROLLER DE 5M)-1R000160 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/2/9/img/109029.jpg)
6 |
TUBE DE DEPRESSION INTAKE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 4T-1R000158 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/8/img/72888.jpg)
7 |
HOSE CLAMP HOSE (5X8) OEM PIAGGIO COMMON A LA RANGE-CM002901 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/9/4/3/img/77943.jpg)
8 |
ROBINET FUEL OEM PIAGGIO 50 TYPHOON, ZIP, NRG 1998 > 2004/GILERA 50 STALKER (PAYS-BAS)-297560 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/5/2/1/img/80521.jpg)
8 |
ROBINET FUEL SCOOT OEM PIAGGIO 50 TYPHOON 1997 > 2010, NRG 1998 > 2005, LIBERTY 1998 > 2005, ZIP 1996 > 2005/GILERA 50 STALKER 1997 > 2011-575331 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/1/img/72891.jpg)
9 |
HOSE CLAMP HOSE (8X11) OEM PIAGGIO COMMON A LA RANGE-CM002904 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/2/5/img/65825.jpg)
10 |
GASKET OF ROBINET FUEL OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-196868 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/6/img/70716.jpg)
11 |
CLAMP SERRAGE ROBINET D'ESSENCE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-879888 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
12 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/4/7/8/img/80478.jpg)
13 |
FUEL TANK "PIAGGIO GENUINE PART" 50 TYPHOON, NRG 1998>2005 -574934- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/9/img/66019.jpg)
14 |
BUSH SPACER (7X10X10) OEM PIAGGIO COMMON A LA RANGE-257302 More informationQuantity required : 3 |
||||||
|
15 |
257301-BUFFER More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/3/img/65793.jpg)
16 |
WASHER PLATE (6. 5X18. 4) OEM PIAGGIO COMMON A LA RANGE-179575 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/1/img/66021.jpg)
17 |
257403 - VIS More informationQuantity required : 3 |
||||||
|
18 |
258161 - JOINT More informationQuantity required : 1 |
||||||
|
19 |
257303 - JAUGE ESSENCE SFERA More informationQuantity required : 1 |
