Vehicle Exploded View - GILERA STALKER 50 Naked 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

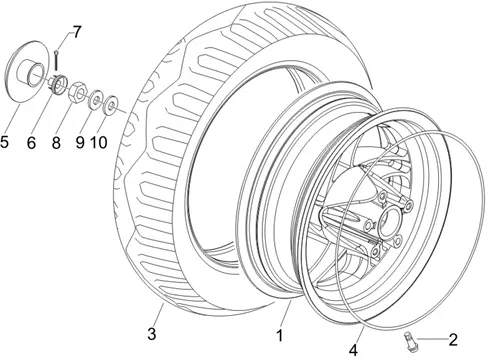

Suspensions - roues : 04.12 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/153/Stalker_Naked_2008_04.12.PNG)
1 |
649504 - JANTE AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
2 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-270991 More informationQuantity required : 1 |
||||||
|
3 |
PNEU 130/70-12"(CHENG SHIN) |
||||||
|
4 |
64773600RL - BANDE DECORATION More informationQuantity required : 2 |
||||||
|
5 |
563755 - PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/9/6/5/0/img/189650.jpg)
6 |
CAGE MOUNTING NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-1C004746 More informationQuantity required : 1 |
||||||
|
6 |
CAGE MOUNTING NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-1C004746 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/5/img/65355.jpg)
7 |
GOUPILLE SECURITE NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-012789 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/5/img/67035.jpg)
8 |
NUT (M16) OEM PIAGGIO COMMON A TOUTE LA RANGE-563728 More informationQuantity required : 1 |
||||||
|
9 |
601769 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/7/img/65757.jpg)
10 |
WASHER PLATE (16X34X2) OEM PIAGGIO COMMON A LA RANGE-159347 More informationQuantity required : 1 |
