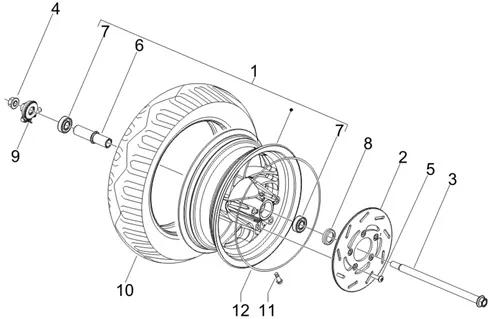

Vehicle Exploded View - GILERA STALKER 50 Naked 2008 GILERA

Suspensions - roues : 04.11 ROUE AVANT
Roue avant
Search
56439R0090 - ROUE AV.

1
P2R reference P2R reference 80051
Maker reference Maker reference 56439R0090

56439R0090 - ROUE AV.

More information

Quantity required : 0

FRONT BRAKE DISC "PIAGGIO GENUINE PART" GILERA 50 STALKER NACKED -56423R

2
P2R reference P2R reference 80035
Maker reference Maker reference 56423R

FRONT BRAKE DISC "PIAGGIO GENUINE PART" GILERA 50 STALKER NACKED -56423R

More information

Quantity required : 1

FRONT WHEEL AXLE "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2009/GILERA 50 STALKER -CM076901-

3
P2R reference P2R reference 95669
Maker reference Maker reference CM076901

FRONT WHEEL AXLE "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2009/GILERA 50 STALKER -CM076901-

More information

Quantity required : 1

NUT (M12) WHEEL SPINDLE OEM PIAGGIO COMMON A LA RANGE-271740

4
P2R reference P2R reference 66103
Maker reference Maker reference 271740

NUT (M12) WHEEL SPINDLE OEM PIAGGIO COMMON A LA RANGE-271740

More information

Quantity required : 1

SCREW BTR HEAD BOMBEE (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-667152

5
P2R reference P2R reference 68436
Maker reference Maker reference 667152

SCREW BTR HEAD BOMBEE (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-667152

More information

Quantity required : 5

563410 - ENTROISE AXE ROUE

6
P2R reference P2R reference 162591
Maker reference Maker reference 563410

563410 - ENTROISE AXE ROUE

More information

Quantity required : 1

BEARING (15X35X11) DE FRONT WHEEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-649910

7
P2R reference P2R reference 68102
Maker reference Maker reference 649910

BEARING (15X35X11) DE FRONT WHEEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-649910

More information

Quantity required : 2

WASHER PROTECTOR POUSSIERE FRONT WHEEL OEM PIAGGIO 50 FLY, RUNNER, STAKER, TYPHOON 2016 <-5644756

8
P2R reference P2R reference 67057
Maker reference Maker reference 564475

WASHER PROTECTOR POUSSIERE FRONT WHEEL OEM PIAGGIO 50 FLY, RUNNER, STAKER, TYPHOON 2016 <-5644756

More information

Quantity required : 1

CM077604 - PRISE MOUVEMENT

9
P2R reference P2R reference 95679
Maker reference Maker reference CM077604

CM077604 - PRISE MOUVEMENT

More information

Quantity required : 1

PNEU (CHENG SHIN) 120/70 12

10
P2R reference P2R reference
Maker reference Maker reference 649485

PNEU (CHENG SHIN) 120/70 12

VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-270991

11
P2R reference P2R reference 66094
Maker reference Maker reference 270991

VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-270991

More information

Quantity required : 1

64773600RL - BANDE DECORATION

12
P2R reference P2R reference 86739
Maker reference Maker reference 64773600RL

64773600RL - BANDE DECORATION

More information

Quantity required : 2
