Vehicle Exploded View - GILERA STALKER 50 Naked 2008 GILERA

Moteur : 01.15 COUVERCLE CARTER - REFOIDISSEMENT CARTER

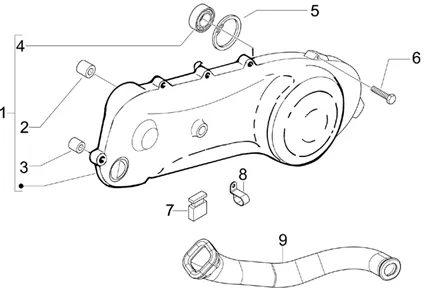

Couvercle carter - Refoidissement carter
Search
COVER/CASING TRANSMISSION OEM PIAGGIO 50 GILERA STALKER 1998 > 2011-4822975

1
P2R reference P2R reference 78965
Maker reference Maker reference 4822975

COVER/CASING TRANSMISSION OEM PIAGGIO 50 GILERA STALKER 1998 > 2011-4822975

More information

Quantity required : 1

BUSH SHAFT OF KICK OEM PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, VESPA LX 2T/GILERA 50 STALKER, RUNNER-286209

2
P2R reference P2R reference 66167
Maker reference Maker reference 286209

BUSH SHAFT OF KICK OEM PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, VESPA LX 2T/GILERA 50 STALKER, RUNNER-286209

More information

Quantity required : 1

BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860

3
P2R reference P2R reference 66417
Maker reference Maker reference 431860

BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860

More information

Quantity required : 1

BEARING (28X8X9) CASING TRANSMISSION OEM PIAGGIO 50 TYPHOON, NRG, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX-82521R

4
P2R reference P2R reference 68524
Maker reference Maker reference 82521R

BEARING (28X8X9) CASING TRANSMISSION OEM PIAGGIO 50 TYPHOON, NRG, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX-82521R

More information

Quantity required : 1

CLIPS/CIRCLIPS (14. 6) OEM PIAGGIO COMMON A TOUTE LA RANGE-006416

5
P2R reference P2R reference 63814
Maker reference Maker reference 0064165

CLIPS/CIRCLIPS (14. 6) OEM PIAGGIO COMMON A TOUTE LA RANGE-006416

More information

Quantity required : 1

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

6
P2R reference P2R reference 66367
Maker reference Maker reference 414838

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

More information

Quantity required : 14

BUFFER STAND OEM PIAGGIO COMMON A LA RANGE-463872

7
P2R reference P2R reference 66537
Maker reference Maker reference 463872

BUFFER STAND OEM PIAGGIO COMMON A LA RANGE-463872

More information

Quantity required : 1

SPRING OF KICK OEM PIAGGIO 50-125 LIBERTY, VESPA LX, VESPA-S, 50 TYPHOON, 50 FLY, 50 NRG/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, MOJITO-288673

8
P2R reference P2R reference 68901
Maker reference Maker reference 830212

SPRING OF KICK OEM PIAGGIO 50-125 LIBERTY, VESPA LX, VESPA-S, 50 TYPHOON, 50 FLY, 50 NRG/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, MOJITO-288673

More information

Quantity required : 1

DUCT AIR OEM PIAGGIO 50 2T FLY, TYPHOON, LX, STALKER, NRG-488129

9
P2R reference P2R reference 66780
Maker reference Maker reference 488129

DUCT AIR OEM PIAGGIO 50 2T FLY, TYPHOON, LX, STALKER, NRG-488129

More information

Quantity required : 1
