Vehicle Exploded View - GILERA STALKER 50 Naked 2008 GILERA

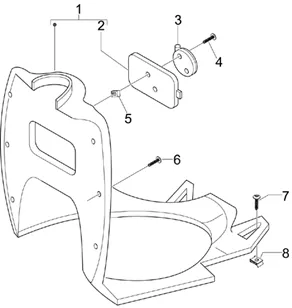

Châssis - parties plastiques - carrosseries : 02.30 COFFRE AVANT - CONTRE-TABLIER
Coffre avant - Contre-tablier
Search
LEG SHIELD INNER OEM PIAGGIO 50 GILERA STALKER 1998 > 2011-574207000C

1
P2R reference P2R reference 80335
Maker reference Maker reference 574207000C

LEG SHIELD INNER OEM PIAGGIO 50 GILERA STALKER 1998 > 2011-574207000C

More information

Quantity required : 1

1
P2R reference P2R reference
Maker reference Maker reference 5742075

TRAPDOOR -573346000C-

2
P2R reference P2R reference 80213
Maker reference Maker reference 573346000C

TRAPDOOR -573346000C-

More information

Quantity required : 1

265093 - CROCHET

3
P2R reference P2R reference 77104
Maker reference Maker reference 265093

265093 - CROCHET

More information

Quantity required : 1

SCREW PARKER (4, 2X19) CRUCIFORME DE INDICATOR OU FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-008457

4
P2R reference P2R reference 63856
Maker reference Maker reference 0084575

SCREW PARKER (4, 2X19) CRUCIFORME DE INDICATOR OU FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-008457

More information

Quantity required : 2

NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408

5
P2R reference P2R reference 72924
Maker reference Maker reference CM017408

NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408

More information

Quantity required : 2

SCREW AUTOTARAUDEUSE (4, 2X25) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-014754

6
P2R reference P2R reference 73797
Maker reference Maker reference 0147545

SCREW AUTOTARAUDEUSE (4, 2X25) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-014754

More information

Quantity required : 8

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

7
P2R reference P2R reference 67113
Maker reference Maker reference 575249

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

More information

Quantity required : 2

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

8
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 2
