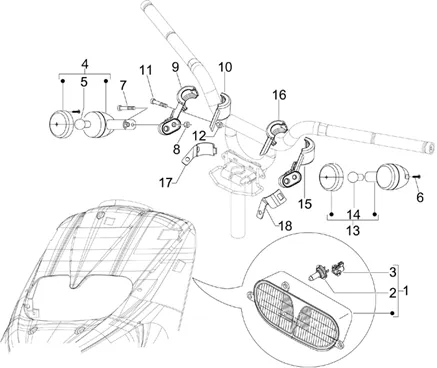

Installation électrique : 06.03 ECLAIRAGES AVANT - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/153/Stalker_Naked_2008_06.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/7/7/0/img/77770.jpg)
1 |
HEADLAMP "PIAGGIO GENUINE PART" GILERA 50 STALKER -294385 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/2/img/65942.jpg)
2 |
AMPOULE/LAMPE 12V 35/35W S2 OEM PIAGGIO COMMON A LA RANGE-219528 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/4/0/6/img/81406.jpg)
3 |
BULB HOLDER - FOR HEADLAMP "PIAGGIO GENUINE PART" GILERA 50 STALKER -580041 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/0/9/4/img/86094.jpg)
4 |
FRONT RIGHT INDICATOR/REAR LEFT OEM PIAGGIO GILERA 50 STALKER NACKED-641034 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
5 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/8/img/66288.jpg)
6 |
SCREW CRUCIFORME (6X14) OEM PIAGGIO COMMON A LA RANGE-296170 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/7/img/67257.jpg)
7 |
SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-582469 More informationQuantity required : 2 |
||||||
8 |
269136-NUT More informationQuantity required : 2 |
||||||
|
9 |
641076-BRACKET INDICATOR DR. More informationQuantity required : 1 |
||||||
|
10 |
641077 - CACHE SUPPORT CLIGNOTANT DR. More informationQuantity required : 1 |
||||||
|
11 |
SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-582469 More informationQuantity required : 2 |
||||||
|
12 |
269136-NUT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/0/9/3/img/86093.jpg)
13 |
FLASHER-FRONT-LEFT/REAR-RIGHT "PIAGGIO GENUINE PART" GILERA 50 STALKER NACKED -641033- More informationQuantity required : 1 |
||||||
|
14 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/1/0/0/img/86100.jpg)
15 |
BRACKET FRONT LEFT INDICATOR OEM PIAGGIO 50 STALKER NAKED 2008-641072 More informationQuantity required : 1 |
||||||
|
16 |
641073-COVER BRACKET INDICATOR GAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/1/0/6/img/86106.jpg)
17 |
SUPPORT FOR FRONT RIGHT FLASHER "PIAGGIO GENUINE PART" GILERA STALKER NAKED -641078 More informationQuantity required : 1 |
||||||
|
18 |
641074-BRACKET AV. INDICATOR GAU More informationQuantity required : 1 |
