Vehicle Exploded View - APRILIA SR 50 SR Motard 50 2T E4 2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

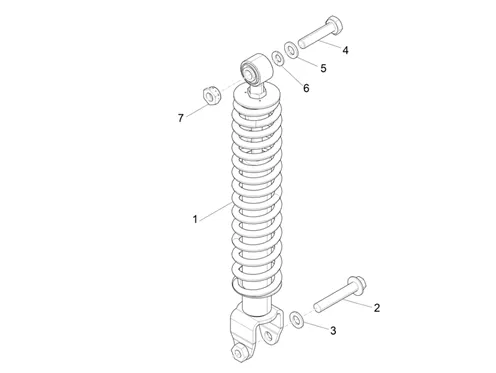

Suspensions - roues : 04.10 SUSPENSION ARRIÈRE - AMORTISSEUR/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/797/SR_Motard_50_2T_E4_2018_(EMEA)_04.10.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/9/3/img/152893.jpg)
1 |
REAR SHOCK ABSORBER OEM PIAGGIO 50 TYPHOON/APRILIA SR MOTARD 2018 >-1C003126 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/9/img/66069.jpg)
2 |
SCREW FLANGE TH (10X55) MOUNTING REAR SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE-268158 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
3 |
WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/6/8/0/img/114680.jpg)
4 |
SCREW TH (10X45) OEM PIAGGIO COMMON A TOUTE LA RANGE-B024614 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/9/4/img/152894.JPG)
5 |
WASHER PLATE (10X22. 2X1. 7) OEM PIAGGIO COMMON A LA RANGE-B015321 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/9/5/img/152895.JPG)
6 |
WASHER PLATE (10X22. 5X1. 7) OEM PIAGGIO COMMON A LA RANGE-B015320 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
7 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 1 |
