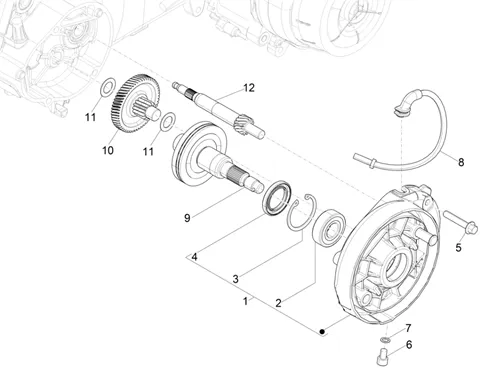

Moteur : 01.25 ENSEMBLE RÉDUCTEUR
Ensemble réducteur
Search
CASING DE REDUCTEUR DE TRANSMISSION OEM PIAGGIO 50 TYPHOON 2010 >, FLY 2005 >, LIBERTY 2005 >, VESPA PRIMAVERA 2013 >, SPRINT 2014 >/APRILIA 50 SCARABEO 2005 >, SR MOTARD 2010 >-1A016446

1
P2R reference P2R reference 72649
Maker reference Maker reference B0146385

CASING DE REDUCTEUR DE TRANSMISSION OEM PIAGGIO 50 TYPHOON 2010 >, FLY 2005 >, LIBERTY 2005 >, VESPA PRIMAVERA 2013 >, SPRINT 2014 >/APRILIA 50 SCARABEO 2005 >, SR MOTARD 2010 >-1A016446

More information

Quantity required : 1

BEARING (20X47X14) SHAFT OF PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-434735

2
P2R reference P2R reference 66459
Maker reference Maker reference 434735

BEARING (20X47X14) SHAFT OF PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-434735

More information

Quantity required : 1

CLIPS/CIRCLIPS (47X50. 5X1. 75) OEM PIAGGIO COMMON A TOUTE LA RANGE-006647

3
P2R reference P2R reference 63825
Maker reference Maker reference 0066475

CLIPS/CIRCLIPS (47X50. 5X1. 75) OEM PIAGGIO COMMON A TOUTE LA RANGE-006647

More information

Quantity required : 1

OIL SEAL (30X47X6) WHEEL SPINDLE OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, SPORT-CITY-478498

4
P2R reference P2R reference 66558
Maker reference Maker reference 478498

OIL SEAL (30X47X6) WHEEL SPINDLE OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, SPORT-CITY-478498

More information

Quantity required : 1

SCREW FLANGE TH (8X45) OEM PIAGGIO COMMON A LA RANGE-B016805

5
P2R reference P2R reference 72730
Maker reference Maker reference B016805

SCREW FLANGE TH (8X45) OEM PIAGGIO COMMON A LA RANGE-B016805

More information

Quantity required : 5

SCREW BTR (8X12) OEM PIAGGIO COMMON A LA RANGE-269755

6
P2R reference P2R reference 66085
Maker reference Maker reference 269755

SCREW BTR (8X12) OEM PIAGGIO COMMON A LA RANGE-269755

More information

Quantity required : 1

GASKET OF VIDANGE CASING DE TRANSMISSION (8, 2X12X1) OEM PIAGGIO COMMON A TOUTE LA RANGE-485703-X000D

7
P2R reference P2R reference 66689
Maker reference Maker reference 485703

GASKET OF VIDANGE CASING DE TRANSMISSION (8, 2X12X1) OEM PIAGGIO COMMON A TOUTE LA RANGE-485703-X000D

More information

Quantity required : 1

TUBE/CONDUIT DE PURGE ORIGINIE PIAGGIO COMMON A LA RANGE-CM162202

8
P2R reference P2R reference 73335
Maker reference Maker reference CM162202

TUBE/CONDUIT DE PURGE ORIGINIE PIAGGIO COMMON A LA RANGE-CM162202

More information

Quantity required : 2

8337855 - AXE ROUE

9
P2R reference P2R reference 69085
Maker reference Maker reference 8337855

WHEEL SPINDLE REAR OEM PIAGGIO 50 TYPHOON/APRILIA SR MOTARD 2012 >/VESPA SPRINT 2014-2017-1A017187

More information

Quantity required : 1

SHAFT DE RENVOI OEM PIAGGIO 50 2T TYPHOON, SR MOTARD APRILIA 2018 >-833784

10
P2R reference P2R reference 92901
Maker reference Maker reference 833784

SHAFT DE RENVOI OEM PIAGGIO 50 2T TYPHOON, SR MOTARD APRILIA 2018 >-833784

More information

Quantity required : 1

WASHER PLATE (16X26X1) SHAFT INTERMEDIAIRE DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288639

11
P2R reference P2R reference 66196
Maker reference Maker reference 288639

WASHER PLATE (16X26X1) SHAFT INTERMEDIAIRE DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288639

More information

Quantity required : 2

SHAFT DE PULLEY RECEPTRICE OEM PIAGGIO 50 FLY 4T, LIBERTY 4T, TYPHOON 4T, VESPA PRIMAVERA 4T, VESPA SPRINT 4T/GILERA 50 DNA/APRILIA 50 SPORT-CITY 4T, SR-MOTARD 4T-8282335

12
P2R reference P2R reference 68737
Maker reference Maker reference 8282335

SHAFT DE PULLEY RECEPTRICE OEM PIAGGIO 50 FLY 4T, LIBERTY 4T, TYPHOON 4T, VESPA PRIMAVERA 4T, VESPA SPRINT 4T/GILERA 50 DNA/APRILIA 50 SPORT-CITY 4T, SR-MOTARD 4T-8282335

More information

Quantity required : 1
