Vehicle Exploded View - APRILIA SR 50 SR Motard 50 2T E4 2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

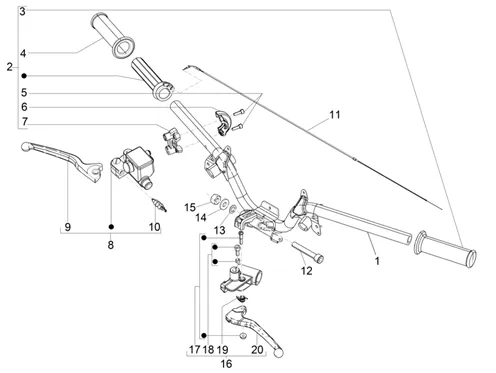

Guidon/direction : 03.06 GUIDON - MAÎTRE CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/797/SR_Motard_50_2T_E4_2018_(EMEA)_03.06.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/2/2/0/img/164220.jpg)
1 |
HANDLEBAR OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-SP1B006076 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/6/6/img/152866.jpg)
2 |
THROTTLE GRIP OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-1C002151 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/8/img/66138.jpg)
3 |
REVETEMENT/GRIP LEFT OEM PIAGGIO 50-125 FLY, VESPA LX, VESPA-S, TYPHOON, 50 ZIP, NRG/APRILIA 50 SR MOTARD, SPORT-CITY-274489 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/9/img/66139.jpg)
4 |
REVETEMENT/GRIP RIGHT OEM PIAGGIO 50-125 FLY, VESPA LX, VESPA-S, TYPHOON, 50 ZIP, NRG/APRILIA 50 SR MOTARD, SPORT-CITY-274491 More informationQuantity required : 1 |
||||||
5 |
975805 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/3/1/4/img/109314.jpg)
6 |
HALF CLAMP UPPER DE THROTTLE GRIP OEM PIAGGIO COMMON A LA RANGE-666758 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/2/6/1/img/109261.jpg)
7 |
HALF CLAMP LOWER DE THROTTLE GRIP OEM PIAGGIO COMMON A LA RANGE-598369 More informationQuantity required : 1 |
||||||
|
8 |
1C003550 - MAITRE CYLINDRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/6/8/img/152868.jpg)
9 |
BRAKE LEVER RIGHT OEM PIAGGIO 50 TYPHOON 2018/APRILIA 50 SR MOTARD 2018 > BLACK-1C003176 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
10 |
CONTACTEUR LAMP STOP OEM PIAGGIO 125-500 MP3, X10, X-EVO, BEVERLY, RANGE VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO-642032 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/6/9/img/152869.jpg)
11 |
CABLE/CONTROL/TRANSMISSION DE THROTTLE OEM PIAGGIO 50 TYPHOON 2T 2018/APRILIA 50 SR MOTARD 2T 2018 >-1C003515 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/9/4/img/68294.jpg)
12 |
SCREW BTR (10X65) OEM PIAGGIO COMMON A LA RANGE-655554 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/0/img/65350.jpg)
13 |
WASHER CRANTEE (10. 3X17X2) OEM PIAGGIO COMMON A LA RANGE-012543 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
14 |
WASHER PLATE (10. 3X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-178790 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/8/img/65378.jpg)
15 |
NUT (M10) OEM PIAGGIO COMMON A LA RANGE-015330 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/7/0/img/152870.jpg)
16 |
GRIP OF BRAKE LEFT OEM PIAGGIO 50 TYPHOON/SR, SXR APRILIA 2018 >-CM293402 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/8/img/66048.jpg)
17 |
SCREW WITH NUT BRAKE LEVER OEM PIAGGIO COMMON A LA RANGE-265249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/8/img/65718.jpg)
18 |
SCREW BTR (6X17) WITH BUSH OEM PIAGGIO COMMON A LA RANGE-123394 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/7/img/66067.jpg)
19 |
SPRING DE BRAKE LEVER LEFT OEM PIAGGIO COMMON A LA RANGE WITH BRAKE TAMBOUR-267948 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/7/1/img/152871.jpg)
20 |
BRAKE LEVER LEFT OEM PIAGGIO 50 TYPHOON 2018/APRILIA 50 SR MOTARD 2018 >-667387 More informationQuantity required : 1 |
