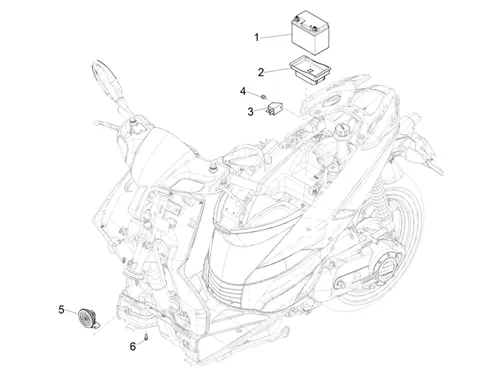

Installation électrique : 06.05 RELAIS - BATTERIE - AVERTISSEUR SONORE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/797/SR_Motard_50_2T_E4_2018_(EMEA)_06.05.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/2/4/img/66924.jpg)
1 |
BATTERY 12V 4AH YTX5L-BS OEM PIAGGIO COMMON A LA RANGE-497484 More informationQuantity required : 1 |
||||||
2 |
1B005286-ADAPTATUR BATTERY More informationQuantity required : 1 |
||||||
|
3 |
680154 - RELAIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
4 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
4 |
SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/2/5/4/img/164254.jpg)
5 |
AVERTISSEUR/HORN OEM APRILIA 50 SXR 2021 >-CM087614 More informationQuantity required : 1 |
||||||
|
5 |
AVERTISSEUR/HORN OEM APRILIA 50 SXR 2021 >-CM087614 More informationQuantity required : 1 |
||||||
|
5 |
AVERTISSEUR/HORN OEM APRILIA 50 SXR 2021 >-CM087614 More informationQuantity required : 1 |
