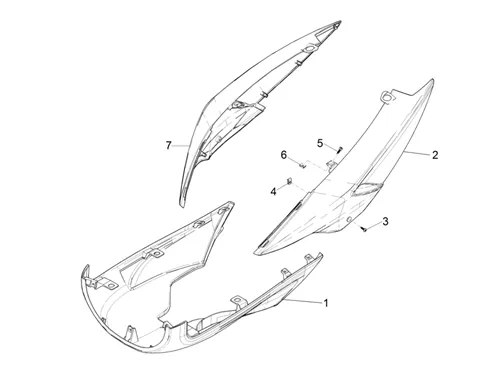

Châssis - parties plastiques - carrosseries : 02.32 COUVERTURES LATERALES - SPOILER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/797/SR_Motard_50_2T_E4_2018_(EMEA)_02.32.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/7/8/7/img/152787.jpg)
1 |
SPOILER OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-1B007341 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/7/9/1/img/152791.jpg)
2 |
BODY PANEL/SIDE PANEL REAR LEFT OEM PIAGGIO APRILIA 50 SR MOTARD 2018 > RED 885/A-SP1B003148000S6 More informationQuantity required : 1 |
||||||
|
2 |
BODY PANEL/SIDE PANEL REAR LEFT OEM PIAGGIO APRILIA 50 SR MOTARD 2018 > RED 885/A-SP1B003148000S6 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/7/8/8/img/152788.jpg)
2 |
BODY PANEL/SIDE PANEL REAR LEFT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > WHITE 544-SB003148000BR More informationQuantity required : 1 |
||||||
2 |
BODY PANEL/SIDE PANEL REAR LEFT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > BRUTE-1B003148 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/7/9/0/img/152790.jpg)
2 |
BODY PANEL/SIDE PANEL REAR LEFT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > BLACK 85/B-SB003148000NL More informationQuantity required : 1 |
||||||
|
2 |
BODY PANEL/SIDE PANEL REAR LEFT OEM PIAGGIO APRILIA 50 SR MOTARD 2018 > RED 885/A-SP1B003148000S6 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
3 |
SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
4 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/2/img/96282.jpg)
5 |
SCREW AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178608 More informationQuantity required : 2 |
||||||
|
6 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/7/9/2/img/152792.jpg)
7 |
BODY PANEL/SIDE PANEL REAR RIGHT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > BLACK 85/B-SB003147000NL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/7/9/3/img/152793.jpg)
7 |
BODY PANEL/SIDE PANEL REAR RIGHT OEM PIAGGIO APRILIA 50 SR MOTARD 2018 > RED 885/A-SP1B003147000S6 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/7/9/4/img/152794.jpg)
7 |
BODY PANEL/SIDE PANEL REAR RIGHT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > WHITE 544-SB003147000BR More informationQuantity required : 1 |
||||||
|
7 |
BODY PANEL/SIDE PANEL REAR RIGHT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > BRUTE-1B003147 More informationQuantity required : 1 |
