Vehicle Exploded View - APRILIA SR 50 SR Motard 50 2T E3 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

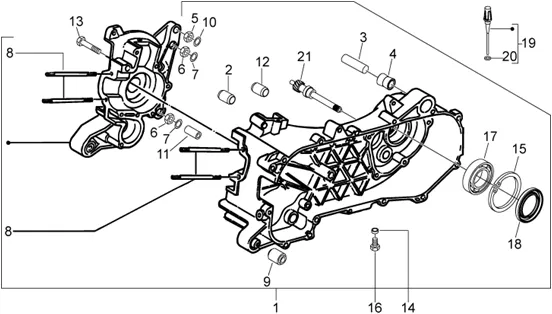

Moteur : 01.05 CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/342/SR_Motard_50_2T_E3_2012-2013_01.05.PNG)
1 |
CM1275105 - CARTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
2 |
BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/4/img/66054.jpg)
3 |
SPACER DE RUBBER MOUNT D'AMORTISSEUR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-266625 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/6/img/66066.jpg)
4 |
RUBBER MOUNT SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-267823 More informationQuantity required : 1 |
||||||
|
5 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020006 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/5/img/65455.jpg)
6 |
NUT (M8) OEM PIAGGIO COMMON A TOUTE LA RANGE-020008 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/9/8/img/65698.jpg)
7 |
WASHER ARRET OEM PIAGGIO COMMON A LA RANGE-113533 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/5/2/img/70652.jpg)
8 |
STUD DE CYLINDER SCOOTER OEM PIAGGIO 50 FLY, LIBERTY, VESPA LX, VESPA SPRINT, 50 NRG, TYPHOON, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR, SPORT CITY ONE-1A003633R More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/6/img/66056.jpg)
9 |
RUBBER MOUNT CASING ENGINE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-266773 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/1/img/66181.jpg)
10 |
WASHER BRAKE (M6) OEM PIAGGIO COMMON A LA RANGE-287223 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/7/img/66417.jpg)
11 |
BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/7/img/72697.jpg)
12 |
PION DE CENTRAGE (11X10) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-B015957 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/6/9/img/72769.jpg)
13 |
SCREW FLANGE TH (6X45) OEM PIAGGIO COMMON A LA RANGE-B017632 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
14 |
GASKET OF VIDANGE CASING DE TRANSMISSION (8, 2X12X1) OEM PIAGGIO COMMON A TOUTE LA RANGE-485703-X000D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/0/4/img/66604.jpg)
15 |
CIRCLIPS SHAFT OEM PIAGGIO COMMON A LA RANGE-480953 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
16 |
SCREW BTR (8X12) OEM PIAGGIO COMMON A LA RANGE-269755 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/3/img/66473.jpg)
17 |
BEARING (17X40X12) SPINDLE PULLEY RECEPTRICE OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER 50 CC-435363 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/9/0/img/66590.jpg)
18 |
OIL SEAL (17X28X5) SPINDLE PULLEY CLUTCH OEM PIAGGIO 50 FLY, LIBERTY, NRG, TYPHOON, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR, SPORT CITY ONE/VESPA LX, SPRINT, PRIMAVERA-480066 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/9/1/img/68991.jpg)
19 |
JAUGE NIVEAU OIL TRANSMISSION OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS, RUNNER-832130 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/4/3/img/68643.jpg)
20 |
GASKET/BUSH ETANCHEITE (14, 43X9, 19X2, 62) OEM PIAGGIO COMMON A LA RANGE-827085 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/0/1/img/66601.jpg)
21 |
SHAFT DE PULLEY OEM RECEPTRICE PIAGGIO 50 FLY 2T 2000 >, FLY 4T 2006 >, LIBERTY 2T 2000 >, TYPHOON 2011 > VESPA PRIMAVERA 4T 2012 >/APRILIA SR MOTARD 2T 2012 >, SPORT-CITY 2T 2008 >-480848 More informationQuantity required : 1 |
All the exploded views of this vehicle
-
