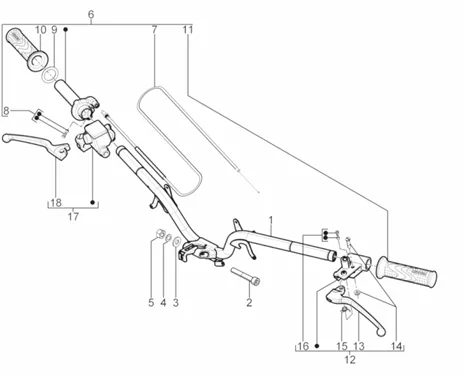

Guidon/direction : 03.06 GUIDON - MAÎTRE CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/342/SR_Motard_50_2T_E3_2012-2013_03.06.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/5/1/img/69651.jpg)
1 |
HANDLEBAR SCOOTER OEM PIAGGIO 50 TYPHOON 2010 > 2017/APRILIA 50 SR MOTARD 2012 > 2017-853047 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/9/4/img/68294.jpg)
2 |
SCREW BTR (10X65) OEM PIAGGIO COMMON A LA RANGE-655554 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
3 |
WASHER PLATE (10. 3X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-178790 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/0/img/65350.jpg)
4 |
WASHER CRANTEE (10. 3X17X2) OEM PIAGGIO COMMON A LA RANGE-012543 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/8/img/65378.jpg)
5 |
NUT (M10) OEM PIAGGIO COMMON A LA RANGE-015330 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/6/5/img/72965.jpg)
6 |
CONTROL DE THROTTLE OEM PIAGGIO APRILIA 50 SR MOTARD, SPORT-CITY ONE-CM060978 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/8/3/img/70783.jpg)
7 |
CABLE/CONTROL/TRANSMISSION DE THROTTLE (DE GRIP AU DEDOUBLEUR) OEM PIAGGIO 50 TYPHOON 2011 >/APRILIA 50 SR MOTARD 2011 >, SPORT CITY-ONE-890301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/8/img/65718.jpg)
8 |
SCREW BTR (6X17) WITH BUSH OEM PIAGGIO COMMON A LA RANGE-123394 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/2/2/img/67022.jpg)
9 |
BUSH GRIP THROTTLE 38, 3X27X1, 2 COMMON A LA RANGE PIAGGIO-6562923 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/9/img/66139.jpg)
10 |
REVETEMENT/GRIP RIGHT OEM PIAGGIO 50-125 FLY, VESPA LX, VESPA-S, TYPHOON, 50 ZIP, NRG/APRILIA 50 SR MOTARD, SPORT-CITY-274491 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/8/img/66138.jpg)
11 |
REVETEMENT/GRIP LEFT OEM PIAGGIO 50-125 FLY, VESPA LX, VESPA-S, TYPHOON, 50 ZIP, NRG/APRILIA 50 SR MOTARD, SPORT-CITY-274489 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/7/1/img/72971.jpg)
12 |
GRIP OF BRAKE LEFT COMPLETE OEM PIAGGIO 50-125 TYPHOON 2010 >, 125 SKIPPER 1998 >, HEXAGON LX4 1996 >/APRILIA 50 SR MOTARD 2010 >, 50-125 SPORT-CITY ONE 2008 >-CM063805 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/7/4/img/67074.jpg)
13 |
BRAKE LEVER LEFT OEM PIAGGIO 50 TYPHOON 2010 > 2017/APRILIA 50 SR MOTARD 2012 > 2017-564681 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/8/img/66048.jpg)
14 |
SCREW WITH NUT BRAKE LEVER OEM PIAGGIO COMMON A LA RANGE-265249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/7/img/66067.jpg)
15 |
SPRING DE BRAKE LEVER LEFT OEM PIAGGIO COMMON A LA RANGE WITH BRAKE TAMBOUR-267948 More informationQuantity required : 1 |
||||||
|
16 |
SCREW BTR (6X17) WITH BUSH OEM PIAGGIO COMMON A LA RANGE-123394 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/7/3/img/72973.jpg)
17 |
BRAKE MASTER CYLINDER FRONT (HENG-TONG) OEM PIAGGIO 50 TYPHOON 2010 > 2016/APRILIA 50 SR MOTARD 2012 > 2014-CM064305 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/1/0/img/66910.jpg)
18 |
BRAKE LEVER RIGHT OEM PIAGGIO 50 ZIP 2000 >, TYPHOON 2010 >/GILERA 50 STALKER 2005/APRILIA 50 SR 2010 >, SPORT-CITY 2008 > (HENG-TONG)-497041 More informationQuantity required : 1 |
