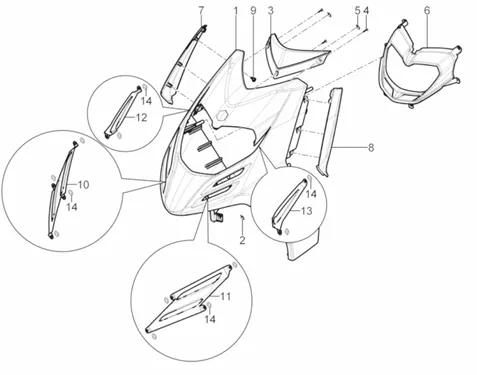

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/342/SR_Motard_50_2T_E3_2012-2013_02.26.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/5/9/4/img/38594.jpg)
1 |
FRONT PANEL FRONT OEM PIAGGIO APRILIA 50 SR MOTARD 2012 > 2014 WHITE-6574610087 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/5/0/img/68350.jpg)
1 |
FRONT PANEL FRONT SCOOT OEM PIAGGIO 50 TYPHOON 2011 >/APRILIA 50 SR SUPER MOTARD 2011 > BLACK 94-6574610090 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/5/9/5/img/38595.jpg)
1 |
65746100AO - TABLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/8/2/3/img/89823.jpg)
1 |
FRONT PANEL FRONT SCOOT OEM PIAGGIO 50-125 TYPHOON 2010 > 2017/APRILIA 50-125 SR SUPER MOTARD 2012 > 2017 GREY 742/B-65746100EZ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
2 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/1/1/img/69711.jpg)
3 |
COVER UPPER DE FRONT PANEL FRONT OEM PIAGGIO 50 TYPHOON 2011 >/APRILIA 50 SR MOTARD 2011 >-85643600XH1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/0/img/96280.jpg)
4 |
SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178606 More informationQuantity required : 3 |
||||||
|
5 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/5/5/img/68355.jpg)
6 |
ENTOURAGE DE HEADLAMP OEM PIAGGIO 50 TYPHOON 2011 >/APRILIA 50 SR MOTARD 2011 >-65746800XH1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/5/2/img/68352.jpg)
7 |
DEFLECTOR DE FRONT PANEL FRONT RIGHT OEM PIAGGIO 50 TYPHOON 2011 >/APRILIA 50 SR MOTARD 2011 >-65746300XH1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/5/1/img/68351.jpg)
8 |
DEFLECTOR DE FRONT PANEL FRONT LEFT OEM PIAGGIO 50 TYPHOON 2011 >/APRILIA 50 SR MOTARD 2011 >-65746200XH1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
9 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/7/3/img/68373.jpg)
10 |
GRILLE DE LEG SHIELD FRONT INFERIEURE RIGHT OEM PIAGGIO 50 TYPHOON 2011 >/APRILIA 50 SR MOTARD 2011 >-664307 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/7/5/img/68375.jpg)
11 |
GRILLE DE LEG SHIELD FRONT INFERIEURE LEFT OEM PIAGGIO 50 TYPHOON 2011 >/APRILIA 50 SR MOTARD 2011 >-664309 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/7/2/img/68372.jpg)
12 |
GRILLE DE LEG SHIELD FRONT SUPERIEURE RIGHT OEM PIAGGIO 50 TYPHOON 2011 >/APRILIA 50 SR MOTARD 2011 >-664306 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/7/4/img/68374.jpg)
13 |
GRILLE DE LEG SHIELD FRONT SUPERIEURE LEFT OEM PIAGGIO 50 TYPHOON 2011 >/APRILIA 50 SR MOTARD 2011 >-664308 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/8/4/img/68384.jpg)
14 |
WASHER BRAKE LEG SHIELD FRONT OEM PIAGGIO 50 TYPHOON 2011 >/APRILIA 50 SR MOTARD 2011 >-664454 More informationQuantity required : 12 |
