Vehicle Exploded View - APRILIA SR 50 SR Motard 50 2T E3 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

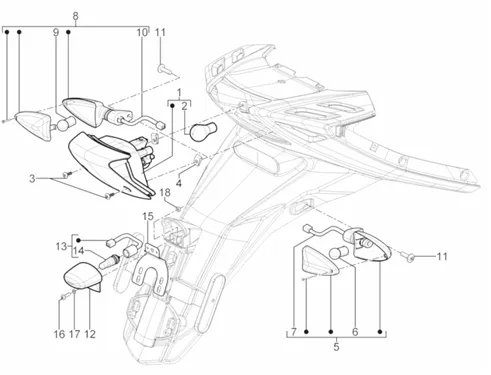

Installation électrique : 06.04 ECLAIRAGES ARRIÈRE - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/342/SR_Motard_50_2T_E3_2012-2013_06.04.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/3/img/67953.jpg)
1 |
LAMP REAR OEM PIAGGIO 50 TYPHOON 2011 >/APRILIA 50 SR MOTARD 2011 >-642022 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/7/img/65727.jpg)
2 |
AMPOULE/LAMPE 12V 21/5W BAY15D/P21/5 OEM PIAGGIO COMMON A LA RANGE-129953 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/8/5/img/68385.jpg)
3 |
SCREW CRUCIFORME (5. 2X36) TARAUD OEM PIAGGIO COMMON A LA RANGE-664457 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
4 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/4/img/67954.jpg)
5 |
REAR RIGHT INDICATOR OEM PIAGGIO 50 TYPHOON 2010 > 2016/APRILIA 50 SR MOTARD 2010 > 2016-642023 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
6 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 1 |
|||||||||
7 |
664359-WIRING HARNESS INDICATEUR DIR. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/5/img/67955.jpg)
8 |
REAR LEFT INDICATOR OEM PIAGGIO 50 TYPHOON 2010 > 2016/APRILIA 50 SR MOTARD 2010 > 2016-642024 More informationQuantity required : 1 |
|||||||||
|
9 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 1 |
|||||||||
|
10 |
664361-WIRING HARNESS INDICATEUR DIR. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
11 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/6/9/img/69769.jpg)
12 |
LUMIERE/VEILLEUSE ECLAIRAGE PLATE IMMATRICULATION OEM PIAGGIO 50 TYPHOON 2010 > 2016/APRILIA 50 SR MOTARD 2012 > 2014, SPORT-CITY ONE-858306 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/6/4/img/69764.jpg)
13 |
WIRING LUMIERE PLATE OEM PIAGGIO 50 TYPHOON 2010 > 2016-858180 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
14 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 1 |
|||||||||
|
15 |
858334-FLANGE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
16 |
SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
17 |
WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
18 |
NUT (M4) OEM PIAGGIO COMMON A LA RANGE-020104 More informationQuantity required : 2 |
|||||||||
