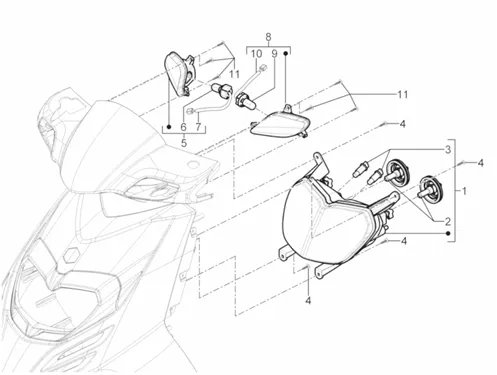

Installation électrique : 06.03 ECLAIRAGES AVANT - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/342/SR_Motard_50_2T_E3_2012-2013_06.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/2/img/67952.jpg)
1 |
LAMP UNIT/HEADLAMP/HEADLAMP OEM PIAGGIO 50 TYPHOON 2011 > 2017/APRILIA 50 SR MOTARD 2012 > 2017-642021 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/8/1/img/64381.jpg)
2 |
AMPOULE/LAMPE 12V 35W H8 OEM PIAGGIO COMMON A LA RANGE-00H01004131 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/9/img/66269.jpg)
3 |
AMPOULE/LAMPE 12V 3W W2, 1X9, 5D OEM PIAGGIO COMMON A LA RANGE-294131 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/0/img/96280.jpg)
4 |
SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178606 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/6/img/67956.jpg)
5 |
FRONT RIGHT INDICATOR OEM PIAGGIO 50 TYPHOON 2010 > 2016/APRILIA 50 SR MOTARD 2010 > 2016-642025 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
6 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 1 |
||||||
7 |
664360-WIRING HARNESS INDICATEUR DIR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/7/img/67957.jpg)
8 |
FRONT LEFT INDICATOR OEM PIAGGIO 50 TYPHOON 2010 > 2016/APRILIA 50 SR MOTARD 2010 > 2016-642026 More informationQuantity required : 1 |
||||||
|
9 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 1 |
||||||
|
10 |
664362-WIRING HARNESS INDICATEUR DIR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/6/8/img/68368.jpg)
11 |
SCREW AUTOTARAUDEUSE (3. 5X12) CRUCIFORME ORIGNE PIAGGIO COMMON A LA RANGE-664170 More informationQuantity required : 6 |
