Vehicle Exploded View - APRILIA SR 125 SR MAX 125 2011-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

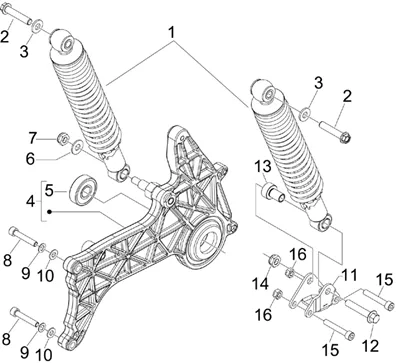

Suspensions - roues : 04.10 SUSPENSION ARRIÈRE - AMORTISSEUR/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/580/SR_MAX_125_2011-2013_04.10.PNG)
1 |
647524-SHOCK ABSORBER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
2 |
WASHER PLATE (10. 3X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-178790 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/4/img/67364.jpg)
3 |
SCREW FLANGE TH (10X50) OEM PIAGGIO COMMON A LA RANGE-268158 More informationQuantity required : 2 |
||||||
|
4 |
849125-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/4/6/img/68546.jpg)
5 |
BEARING (17X47X14) DE ARM DE SUSPENSION REAR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-82545R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
6 |
WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/9/3/img/68593.jpg)
8 |
SCREW BTR (8X45) OEM PIAGGIO COMMON A LA RANGE-826298 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
9 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
10 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 2 |
||||||
|
11 |
647610-PATTES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/9/img/66069.jpg)
12 |
SCREW FLANGE TH (10X55) MOUNTING REAR SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE-268158 More informationQuantity required : 1 |
||||||
|
13 |
647621-BUSH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/5/img/65455.jpg)
14 |
NUT (M8) OEM PIAGGIO COMMON A TOUTE LA RANGE-020008 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/1/img/69321.jpg)
15 |
SCREW BTR (8X50) OEM PIAGGIO COMMON A LA RANGE-844483 More informationQuantity required : 2 |
