Vehicle Exploded View - APRILIA SR 125 SR MAX 125 2011-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

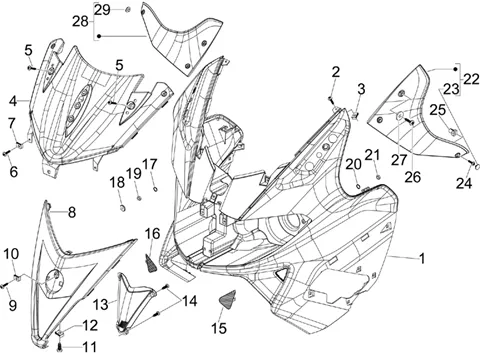

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/580/SR_MAX_125_2011-2013_02.26.PNG)
1 |
624503-LEG SHIELD AV UNPAINTED More informationQuantity required : 1 |
|||||||||
|
1 |
62450300BM - TABLIER AV. More informationQuantity required : 1 |
|||||||||
|
1 |
62450350XN2-LEG SHIELD More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
2 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/0/1/4/img/71014.jpg)
4 |
UPPER FRONT RIM "PIAGGIO GENUINE PART" GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -975051000G More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
5 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
6 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
7 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 2 |
|||||||||
|
8 |
62436900BM-CADRE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/3/5/7/img/38357.jpg)
8 |
SURROUND DE FRONT PANEL FRONT OEM APRILIA 125 SR MAX 2011-2014-62436900XR4 More informationQuantity required : 1 |
|||||||||
|
9 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 1 |
|||||||||
|
10 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
|||||||||
|
11 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
12 |
SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249 More informationQuantity required : 2 |
|||||||||
|
13 |
67398200YE1-GRILLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
14 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 4 |
|||||||||
|
15 |
975725-GRILLE GAU. More informationQuantity required : 1 |
|||||||||
|
16 |
975726-GRILLE DRO. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/1/img/66181.jpg)
17 |
WASHER BRAKE (M6) OEM PIAGGIO COMMON A LA RANGE-287223 More informationQuantity required : 3 |
|||||||||
|
18 |
599284-WASHER More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/7/4/img/65474.jpg)
19 |
NUT M6 OEM PIAGGIO COMMON A LA RANGE-020206 More informationQuantity required : 3 |
|||||||||
|
20 |
WASHER BRAKE (M6) OEM PIAGGIO COMMON A LA RANGE-287223 More informationQuantity required : 4 |
|||||||||
|
21 |
NUT M6 OEM PIAGGIO COMMON A LA RANGE-020206 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/5/7/8/img/38578.jpg)
22 |
PROTEGE MAIN LEFT OEM PIAGGIO APRILIA 125-300 SR-MAX 2011 > 2014-652848000C More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/4/img/66264.jpg)
23 |
CAP COVER OEM PIAGGIO COMMON A LA RANGE-293717 More informationQuantity required : 1 |
|||||||||
|
24 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
25 |
AGRAPHE/CHEVILLE A EXPANSION OEM PIAGGIO COMMON A TOUTE LE RANGE-199190 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/2/5/img/67625.jpg)
26 |
SCREW BTR HEAD BOMBEE (6X30) OEM PIAGGIO COMMON A LA RANGE-620365 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/6/img/66076.jpg)
27 |
WASHER PLATE (6. 4X12X1) OEM PIAGGIO COMMON A LA RANGE-269134 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/5/7/9/img/38579.jpg)
28 |
PROTEGE MAIN RIGHT OEM PIAGGIO APRILIA 125-300 SR-MAX-652849000C More informationQuantity required : 1 |
|||||||||
|
29 |
CAP COVER OEM PIAGGIO COMMON A LA RANGE-293717 More informationQuantity required : 1 |
|||||||||
