Vehicle Exploded View - APRILIA SR 125 SR MAX 125 2011-2013 APRILIA

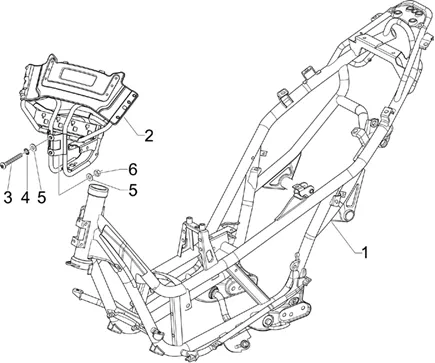

Châssis - parties plastiques - carrosseries : 02.01 CHÂSSIS/COQUE
Châssis/coque
Search
6555945 - CHASSIS

1
P2R reference P2R reference 68296
Maker reference Maker reference 6555945

6555945-FRAME

More information

Quantity required : 1

9750394 - CHáSSIS

2
P2R reference P2R reference 109051
Maker reference Maker reference 9750394

9750394 - CHÁSSIS

More information

Quantity required : 1

SCREW FLANGE TH (6X60) OEM PIAGGIO COMMON A LA RANGE-B016425

3
P2R reference P2R reference 72705
Maker reference Maker reference B016425

SCREW FLANGE TH (6X60) OEM PIAGGIO COMMON A LA RANGE-B016425

More information

Quantity required : 2

WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533

4
P2R reference P2R reference 65345
Maker reference Maker reference 0125335

WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533

More information

Quantity required : 2

WASHER PLATE (6, 2X18X2) OEM PIAGGIO COMMON A LA RANGE-013950

5
P2R reference P2R reference 65368
Maker reference Maker reference 0139505

WASHER PLATE (6, 2X18X2) OEM PIAGGIO COMMON A LA RANGE-013950

More information

Quantity required : 4

NUT FLANGE (D6) DE CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE-969224

6
P2R reference P2R reference 70940
Maker reference Maker reference 969224

NUT FLANGE (D6) DE CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE-969224

More information

Quantity required : 2
