Vehicle Exploded View - APRILIA SR 125 SR MAX 125 2011-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

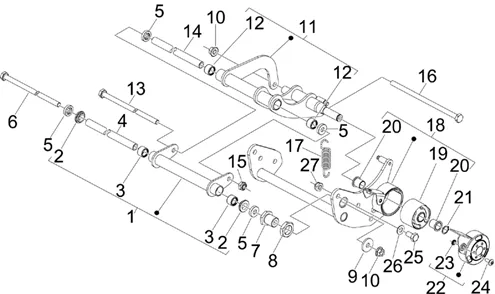

Suspensions - roues : 04.01 BRAS OSCILLANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/580/SR_MAX_125_2011-2013_04.01.PNG)
1 |
56475R1-OEM MOPED SWINGARM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/5/img/67335.jpg)
2 |
BUSH/GASKET ARTICULATION OEM MOPED SWINGARM OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-597317 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/0/4/img/67004.jpg)
3 |
CAGE A AIGUILLES DE OEM MOPED SWINGARM OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA SPORT-CITY, SR MAX/GILERA NEXUS, RUNNER-56127R More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/7/8/img/72978.jpg)
4 |
SPACER DE OEM MOPED SWINGARM OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC-CM067805 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/6/6/img/68166.jpg)
5 |
SPACER DE OEM MOPED SWINGARM OEM PIAGGIO 125-250-300 VESPA GTS/GILERA 125-300 NEXUS-650755 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/2/9/img/67329.jpg)
6 |
SCREW TH (10X295) OEM PIAGGIO COMMON A LA RANGE-597080 More informationQuantity required : 1 |
||||||
|
7 |
597079-GASKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/6/7/img/67067.jpg)
8 |
NUT SPECIAL (22X2 H = 8) OEM MOPED SWINGARM OEM PIAGGIO COMMON A LA RANGE-564611 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/3/img/67333.jpg)
9 |
WASHER PLATE (10X31X3. 5) OEM PIAGGIO COMMON A LA RANGE-597230 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/8/4/img/67084.jpg)
10 |
NUT FLANGE (M10) OEM PIAGGIO COMMON A LA RANGE-564878 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/3/img/67343.jpg)
11 |
OEM MOPED SWINGARM COTE ENGINE OEM PIAGGIO 125-250 X9 2000 >/GILERA 125-250-300 NEXUS 2007 >/APRILIA 125-300 SR-MAX 2012 >-597502 More informationQuantity required : 1 |
||||||
|
12 |
CAGE A AIGUILLES DE OEM MOPED SWINGARM OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA SPORT-CITY, SR MAX/GILERA NEXUS, RUNNER-56127R More informationQuantity required : 2 |
||||||
|
13 |
271779-BOLT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/7/9/img/72979.jpg)
14 |
SPACER DE OEM MOPED SWINGARM 189MM OEM PIAGGIO 125-250-300 VESPA GTS/GILERA 125-300 NEXUS-CM067806 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/0/img/67330.jpg)
16 |
SCREW TH (10X210) OEM PIAGGIO COMMON A LA RANGE-597081 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/7/4/img/68174.jpg)
17 |
SPRING DE BRS OSCILLANT OEM APRILIA 125 SR 2011 > 2014-651027 More informationQuantity required : 1 |
||||||
|
18 |
650904-PLATE FOR STAND * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/6/img/66116.jpg)
19 |
RUBBER MOUNT ENGINE OEM PIAGGIO 125-250 MP3 2007 >, 125 X8 2004 >, X9 2003 >, X-EVO 2007 >, X10 2012 >, VESPA GTS 2007 >/GILERA 125-250 NEXUS 2007 >, RUNNER 2005 >/APRILIA 125 SR-MAX 2011 >-272750 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/6/img/66126.jpg)
20 |
BUSH FOR RUBBER MOUNT DE OEM MOPED SWINGARM ENGINE OEM PIAGGIO COMMON A LA RANGE-273460 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/4/img/63814.jpg)
21 |
CLIPS/CIRCLIPS (14. 6) OEM PIAGGIO COMMON A TOUTE LA RANGE-006416 More informationQuantity required : 1 |
||||||
|
22 |
647872-COVER BRACKET OEM MOPED SWINGARM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/8/img/68888.jpg)
23 |
BUSH EN T (D5) MOLETEE CENTRAGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE-830056 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
24 |
SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/4/img/67354.jpg)
25 |
BOLT OEM PIAGGIO-597893 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/6/img/65346.jpg)
26 |
WASHER EVENTAIL (10, 5) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-012535 More informationQuantity required : 4 |
