Vehicle Exploded View - APRILIA SR 125 SR MAX 125 2011-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

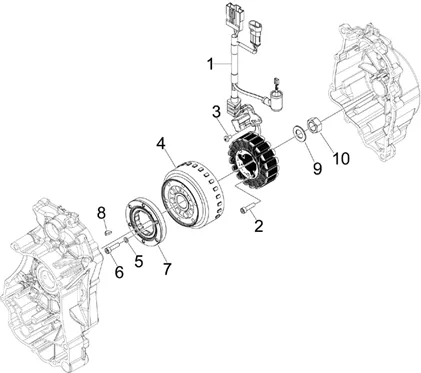

Moteur : 01.21 VOLANT MAGNETIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/580/SR_MAX_125_2011-2013_01.21.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/2/img/67182.jpg)
1 |
STATOR OEM PIAGGIO 250-300 VESPA GTS, BEVERLY, CARNABY, 250 X7, X8, X-EVO, 125 MP3I/GILERA 125-250-300 NEXUS/APRILIA 125 SR MAX, 250-300 ATLANTIC, SCARABEO, SPORT-CITY (ENGINE INJECTION)-58070R More informationQuantity required : 1 |
||||||
2 |
SCREW BTR (6X30) OEM PIAGGIO COMMON A LA RANGE-122637 More informationQuantity required : 3 |
||||||
|
3 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111 More informationQuantity required : 2 |
||||||
|
3 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/3/0/img/67830.jpg)
4 |
ROTOR OEM PIAGGIO 125 MP3, X7, VESPA GTS, BEVERLY/GILERA 125 NEXUS/APRILIA 125 SR MAX (ENGINE INJECTION)-639410 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/9/img/66579.jpg)
5 |
WASHER GROWER (6) OEM PIAGGIO COMMON A LA RANGE-479515 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/5/6/img/70656.jpg)
6 |
SCREW BTR (6X24) OEM PIAGGIO COMMON A LA RANGE-877289 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/4/img/69544.jpg)
7 |
WHEEL LIBRE DE STARTER MOTOR OEM PIAGGIO 125-250 MP3, X7, VESPA GTS, BEVERLY, 250 X8, X-EVO/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC, SPORT-CITY, 125 SR-MAX, 250 SCARABEO-8477975 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/4/img/63674.jpg)
8 |
CLAVETTE IGNITION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-000097 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/2/9/img/69229.jpg)
9 |
WASHER PLATE (16X30X2) OEM PIAGGIO COMMON A LA RANGE-842385 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/5/img/67035.jpg)
10 |
NUT (M16) OEM PIAGGIO COMMON A TOUTE LA RANGE-563728 More informationQuantity required : 1 |
