Vehicle Exploded View - APRILIA SR 50 H20 New IE Carb 2004-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

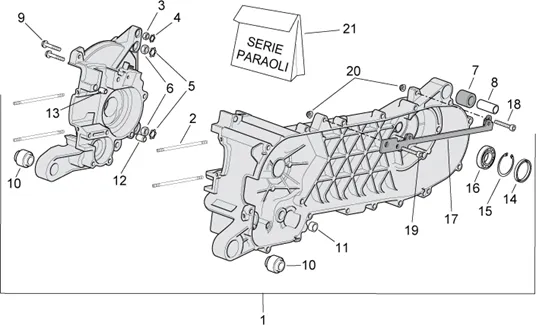

Moteur : 29.39 CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/734/SR_50_H20_New_IE_Carb_2004-2009_29.39.PNG)
1 |
8294235-CASING More informationQuantity required : 1 |
||||||
|
1 |
CM1273235-CASING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/5/2/img/70652.jpg)
2 |
STUD DE CYLINDER SCOOTER OEM PIAGGIO 50 FLY, LIBERTY, VESPA LX, VESPA SPRINT, 50 NRG, TYPHOON, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR, SPORT CITY ONE-1A003633R More informationQuantity required : 4 |
||||||
|
3 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020006 More informationQuantity required : 1 |
||||||
|
4 |
829376-CIRCLIP More informationQuantity required : 1 |
||||||
|
5 |
829377-CIRCLIP More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/5/img/65455.jpg)
6 |
NUT (M8) OEM PIAGGIO COMMON A TOUTE LA RANGE-020008 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/6/img/66066.jpg)
7 |
RUBBER MOUNT SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-267823 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/4/img/66054.jpg)
8 |
SPACER DE RUBBER MOUNT D'AMORTISSEUR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-266625 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/6/9/img/72769.jpg)
9 |
SCREW FLANGE TH (6X45) OEM PIAGGIO COMMON A LA RANGE-B017632 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/6/img/66056.jpg)
10 |
RUBBER MOUNT CASING ENGINE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-266773 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/4/img/66704.jpg)
10 |
RUBBER MOUNT DE CASING ENGINE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-486081 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/9/img/66469.jpg)
11 |
GASKET ETANCHEITE WATER PUMP OEM PIAGGIO 50 NRG 2005 >, ZIP SP 2006 >/GILERA 50 RUNNER 2005 >, DNA 2000 >/APRILIA 50 SR H2O 2000 > LIQUIDE-4352035 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/7/img/66417.jpg)
12 |
BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
13 |
BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/5/8/img/66558.jpg)
14 |
OIL SEAL (30X47X6) WHEEL SPINDLE OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, SPORT-CITY-478498 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/5/img/63825.jpg)
15 |
CLIPS/CIRCLIPS (47X50. 5X1. 75) OEM PIAGGIO COMMON A TOUTE LA RANGE-006647 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/5/9/img/66459.jpg)
16 |
BEARING (20X47X14) SHAFT OF PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-434735 More informationQuantity required : 1 |
||||||
|
17 |
AP8234213 - STAFFA FISSAGGIO CASSA FILTRO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/1/img/71841.jpg)
18 |
SCREW BTR (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8150220 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/3/8/img/50938.jpg)
19 |
AP8152003 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
20 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
|
21 |
497591 - JEU BAGUES D'ET. More informationQuantity required : 1 |
||||||
|
21 |
KIT JOINTS ENGINE OEM PIAGGIO 50 TYPHOON, NRG, ZIP, VESPA LX/GILERA 50 RUNNER, STALKER/APRILIA 50 SR-498337 More informationQuantity required : 1 |
