Vehicle Exploded View - APRILIA SR 50 H20 New IE Carb 2004-2009 APRILIA

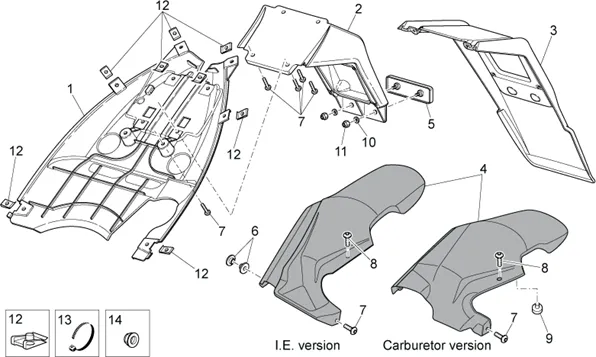

Chassis : 28.15 CARROSSERIE POSTERIEURE III
Carrosserie posterieure III
Search
AP8268058 - PROTEZIONE INF. SERBATOIO

1
P2R reference P2R reference 59827
Maker reference Maker reference AP8268058

AP8268058-PROTEZIONE INF. TANK

More information

Quantity required : 1

AP8268042 - PORTATARGA NERO MET.

2
P2R reference P2R reference 59814
Maker reference Maker reference AP8268042

AP8268042-PORTATARGA NERO MET.

More information

Quantity required : 1

AP8226801 - PARASPRUZZI POST.

3
P2R reference P2R reference 57774
Maker reference Maker reference AP8226801

AP8226801-PARASPRUZZI POST.

More information

Quantity required : 1

AP8226762 - PARAFANGO POST.

4
P2R reference P2R reference 57748
Maker reference Maker reference AP8226762

AP8226762-MUDGUARD POST.

More information

Quantity required : 1

AP8226790 - PARAFANGO POST.

4
P2R reference P2R reference 57768
Maker reference Maker reference AP8226790

AP8226790-MUDGUARD POST.

More information

Quantity required : 1

AP8112916-CATADIOPTRE LAMP REAR

5
P2R reference P2R reference 45896
Maker reference Maker reference AP8112916

AP8112916-CATADIOPTRE LAMP REAR

More information

Quantity required : 1

AP8221218 - DOUILLE GARDE-BOUE

6
P2R reference P2R reference 72305
Maker reference Maker reference AP8221218

AP8221218-BUSH GUARD-MUD

More information

Quantity required : 2

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

7
P2R reference P2R reference 71957
Maker reference Maker reference AP8152298

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

More information

Quantity required : 14

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

8
P2R reference P2R reference 214483
Maker reference Maker reference 2B014101

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

8
P2R reference P2R reference 71961
Maker reference Maker reference AP8152302
Replaced by référence Replaced by référence 214483

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302

More information

Quantity required : 1

BUTEE RUBBER OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8144081

9
P2R reference P2R reference 71746
Maker reference Maker reference AP8144081

BUTEE RUBBER OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8144081

More information

Quantity required : 1

WASHER PLATE (4X9) OEM PIAGGIO COMMON A LA RANGE-AP8150158

10
P2R reference P2R reference 71825
Maker reference Maker reference AP8150158

WASHER PLATE (4X9) OEM PIAGGIO COMMON A LA RANGE-AP8150158

More information

Quantity required : 2

NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204

11
P2R reference P2R reference 71839
Maker reference Maker reference AP8150204

NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204

More information

Quantity required : 2

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

12
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

More information

Quantity required : 10

HOSE CLAMP NYLON TYPE RILSAN 4, 5X180MM OEM PIAGGIO COMMON A LA RANGE-AP8120416

13
P2R reference P2R reference 71394
Maker reference Maker reference AP8120416

HOSE CLAMP NYLON TYPE RILSAN 4, 5X180MM OEM PIAGGIO COMMON A LA RANGE-AP8120416

More information

Quantity required : 1

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066

14
P2R reference P2R reference 71963
Maker reference Maker reference AP8152306

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066

More information

Quantity required : 3
